Service Page - DLN53AA70B/03

Width

53 cm

Colour

Grey

Installation typology

Built-in

Air circulation

Convertible

Total power of the motors

115 W

Type of control setting devices

Mechanical slider

Number of speed settings

3

Max. air extraction

302 m³/h

Sound power at max. speed (2010/30/EC)

62 dB

Max. air recirculation

300 m³/h

Sound power at max. speed (recirculation)

65 dB

Grease filter material

Washable aluminium

Energy efficiency rating

D

Total annual energy consumption

67.7 kWh/a

Included user manuals

[EL, EN]

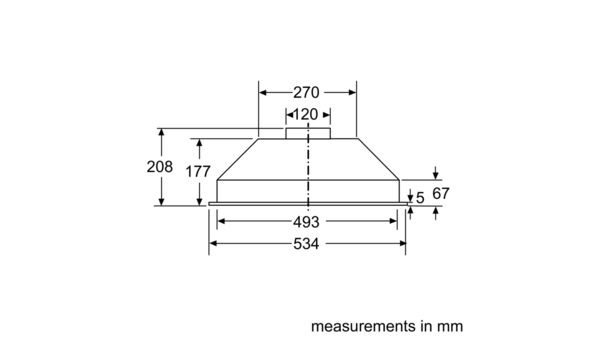

Height of the appliance

208 mm

Width of the appliance

534 mm

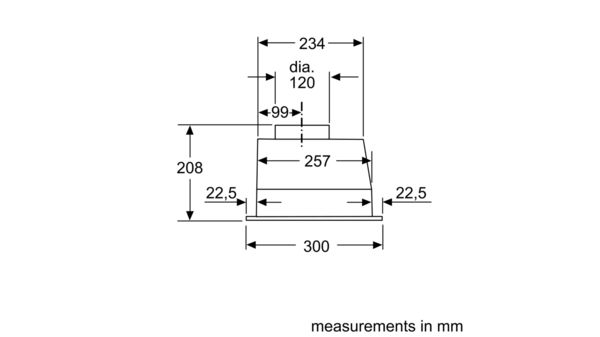

Depth

300 mm

Dimensions of the packed product (HxWxD)

250x610x360 mm

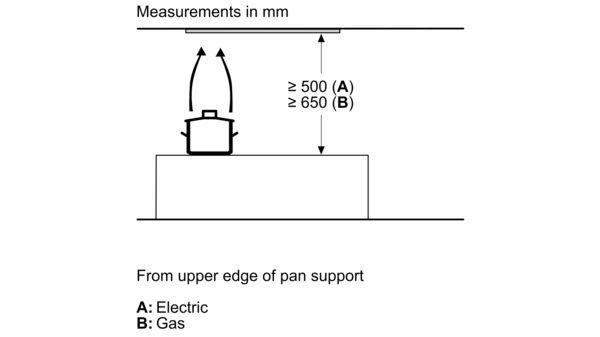

Minimum distance above an electric hob

500 mm

Minimum distance above a gas hob

650 mm

Diameter of air outlet

120 mm

No-return airflow flap

Yes

Length electrical supply cord

150 cm

Net weight

5.0 kg

Handle bar

N/A

Appliance height exhaust air max

208 mm

Appliance height exhaust air min

208 mm

Appliance height recirculating max

208 mm

Appliance height recirculating min

208 mm

Minimum width for installation

493 mm

Maximum width for installation

493 mm

Depth for installation

257 mm

PrefectAir Sensor

No

Cooktop-based hood control

No

EcoSilence Drive - efficient and extra silent

No

Silence

No

Clean filter reminders

No

Boost position

No

Remote control

No

Type of lamps used

N/A

Number of lights

2

Total power of the lamps

6 W

Total luminance

78 lux

Colour temperature

Warm (<= 3.000 K)

Illumination type softlight

No

Color temperature control via smartphone with Home Connect

No

emotionLight Pro

No

Home Connect

No
