Technical Overview
Installation typology
Ceiling
Width
90 cm
Cooktop-based hood control
Yes
Noise level
56 dB(A) re 1 pW
PrefectAir Sensor
No
Air circulation
Convertible
Max. air extraction
459 m³/h
Boost position air extraction
798 m³/h
Specifications
Width
90 cm
Colour
Stainless steel
Installation typology
Ceiling
Air circulation
Convertible
Total power of the motors
160 W
Type of control setting devices
Via app
Number of speed settings
3-stage + 2 intensive
Max. air extraction
459 m³/h
Boost position air extraction
798 m³/h
Sound power at max. speed (2010/30/EC)
56 dB
Sound power boost (2010/30/EC)
68 dB
Max. air recirculation
422 m³/h
Boost position output recirculating
565.0 m³/h
Sound power at max. speed (recirculation)
63 dB
Sound power boost (recirculation)
69 dB
Grease filter material
Washable stainless steel
Energy efficiency rating
A
Total annual energy consumption
34.0 kWh/annum
Included user manuals
[EN]
Voltage
220-240 V

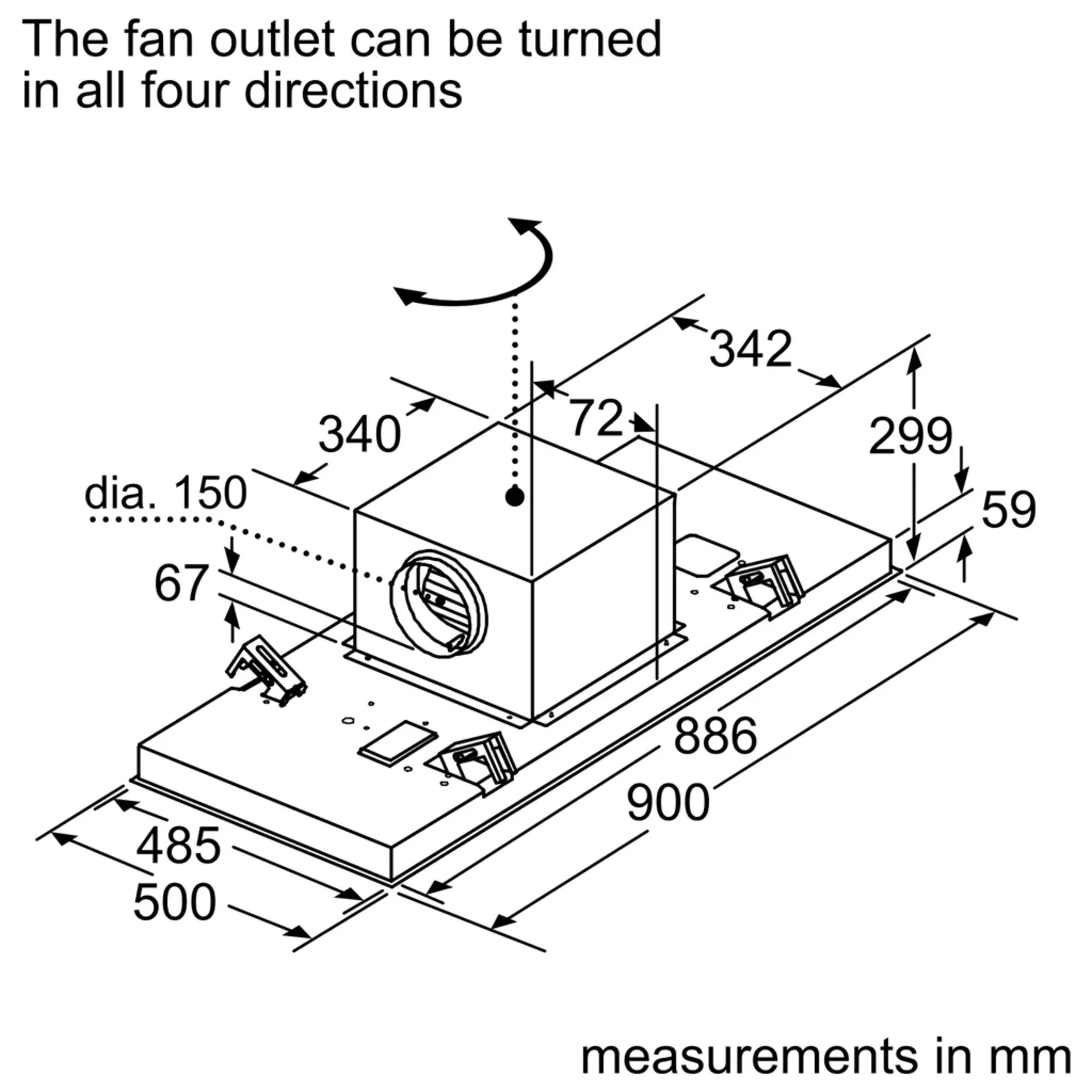

Height of the appliance
300 mm
Width of the appliance
900 mm
Depth
500 mm
Dimensions of the packed product (HxWxD)
590x1040x620 mm
Height of the chimney
GENERAL.N_A mm
Minimum distance above an electric hob

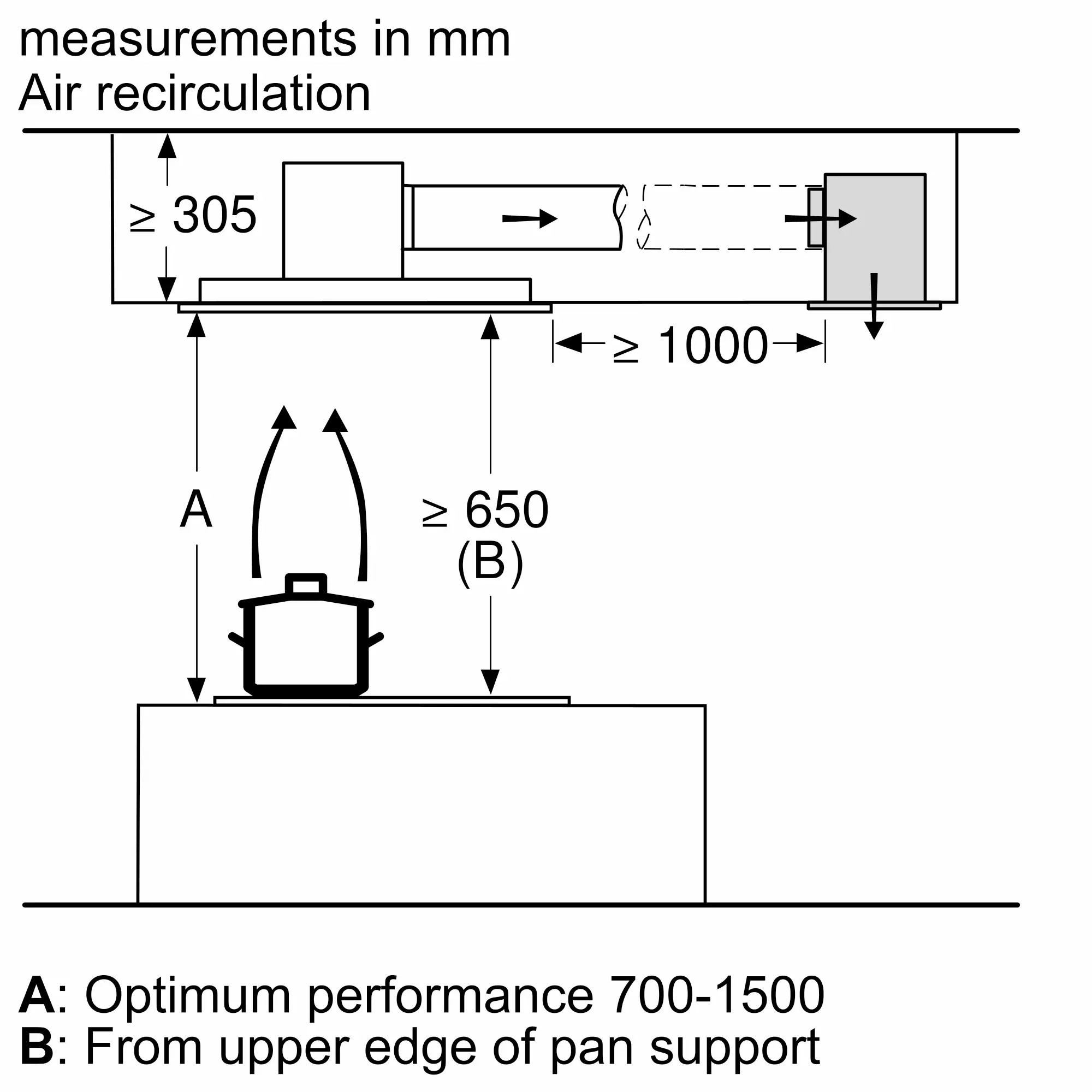

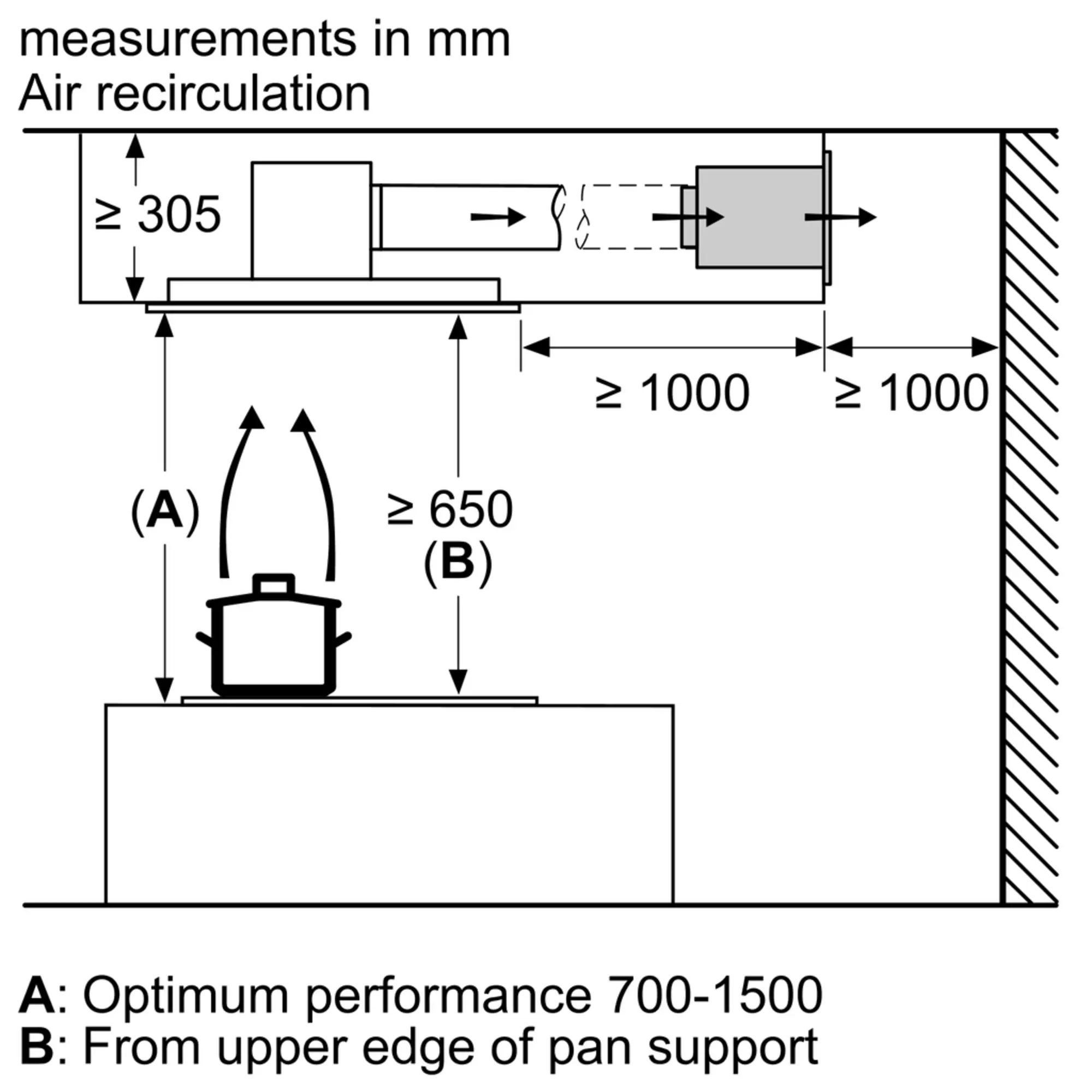

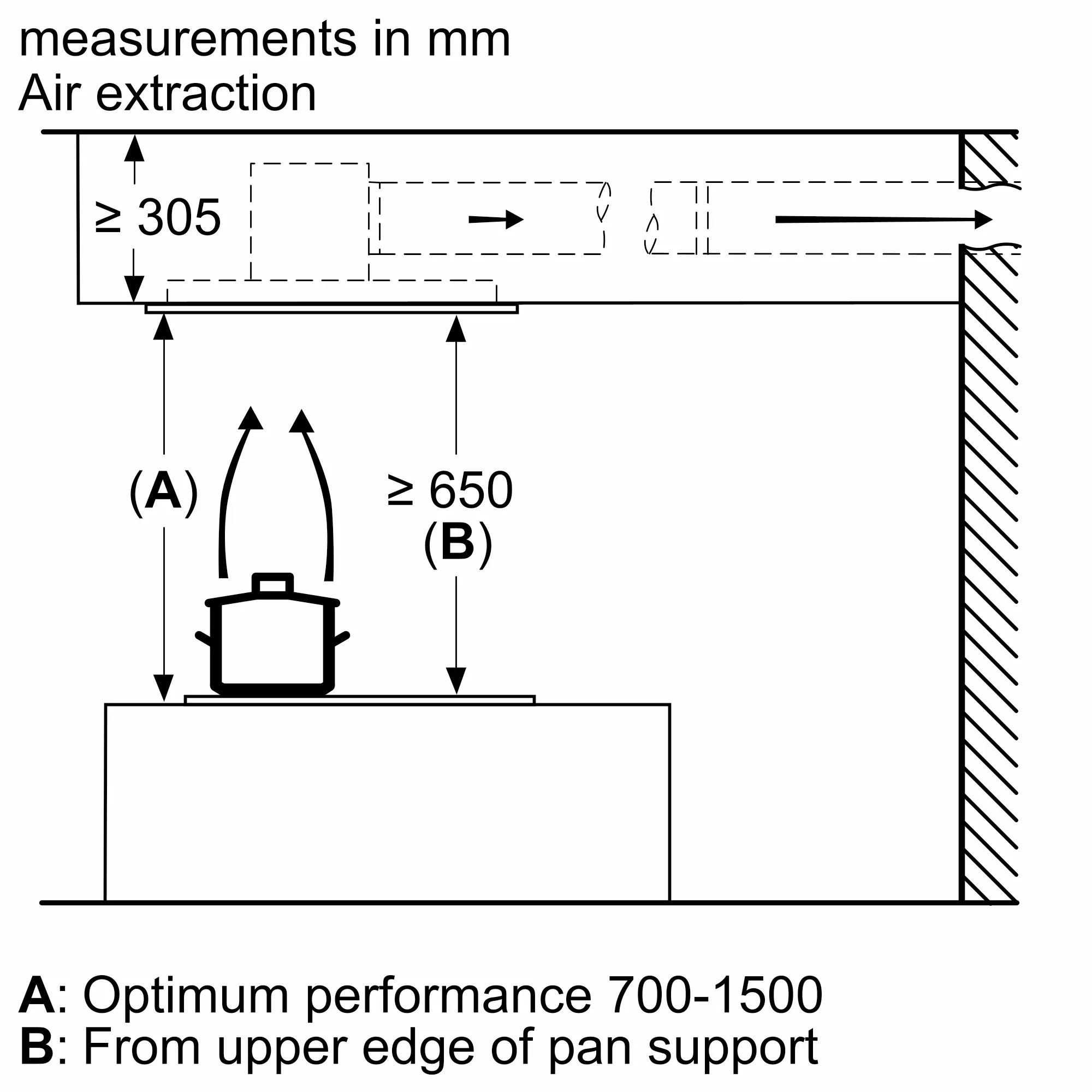

650 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
20.6 kg
Handle bar
N/A
Appliance height exhaust air max
300 mm
Appliance height exhaust air min
300 mm
Appliance height recirculating max
300 mm
Appliance height recirculating min
300 mm

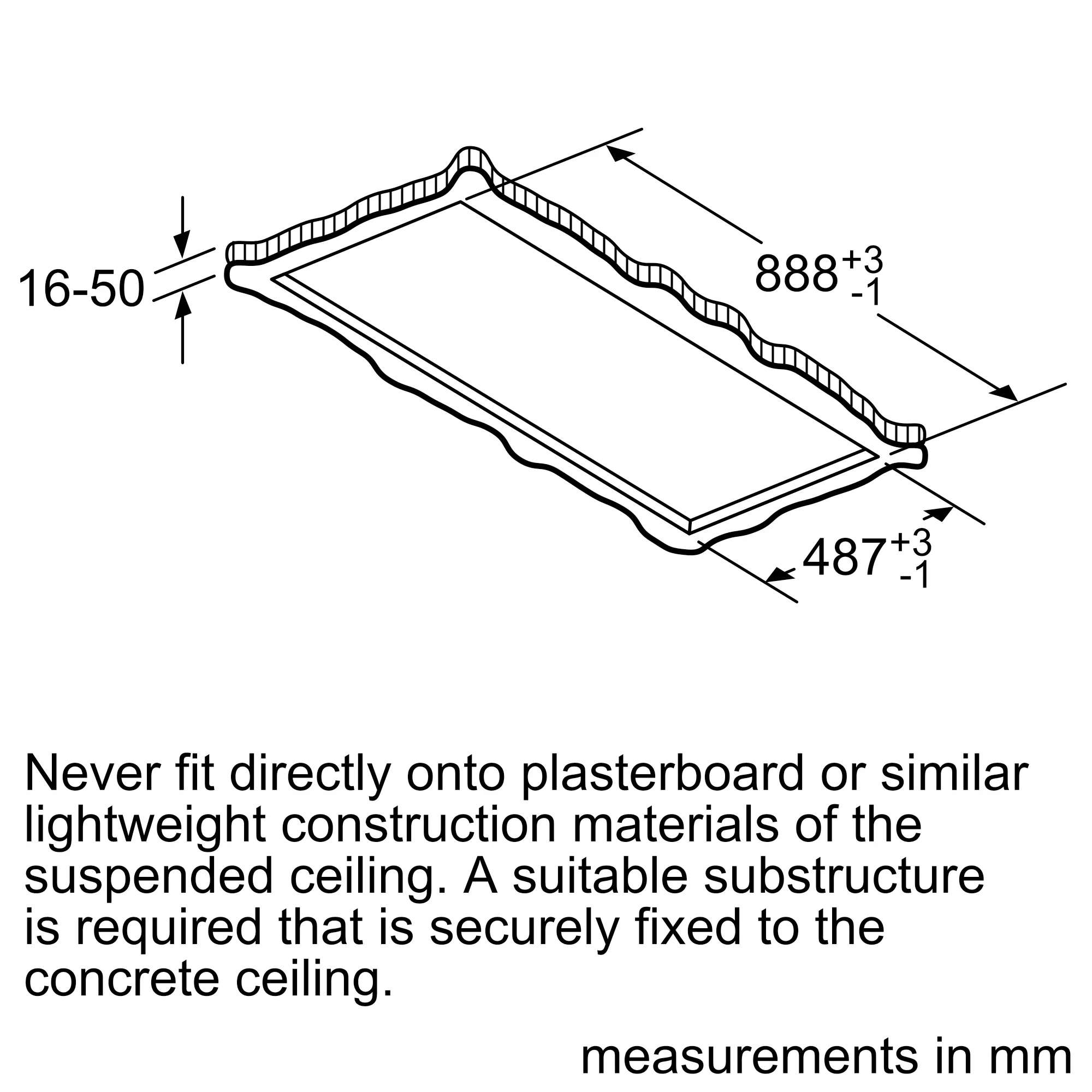

Maximum width for installation
888 mm
Minimum width for installation
888 mm
Depth for installation
487 mm
1 / 0
PrefectAir Sensor
No
SilentPowerDrive - efficient and extra silent
Yes
Silence
Yes
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
Yes
Type of lamps used
N/A
Number of lights
4
Total power of the lamps
GENERAL.N_A W
Total luminance
659 lux
Colour temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Home Connect Features
iService Remote, Remote Monitoring and Control
Cooktop-based hood control
Yes
Smart Hood Automatic
No
