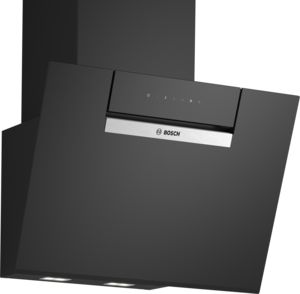

Service Page - DWK67FN60B/05

angled glass design

wall-mounted

Black glass

Suitable for ducted or recirculating operation

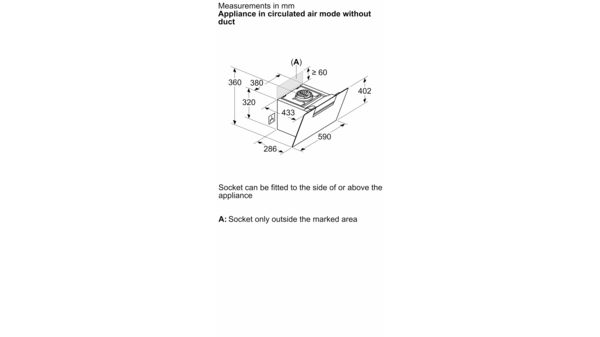

In recirculation operation chimless use possible

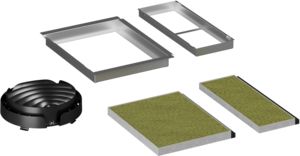

For recirculation operation Clean Air Plus recirculation kit (accessory) needed.

Efficient BLDC technology

2 PC, LED, 3W, with Colour temperature adjustable

Softlight dimmer function : the lighting elements switch on and off smoothly.

Dimmer function : the brightness of the lighting elements can be adjusted.

Colour Temperature: 3500 K

Light Intensity: 502 lux

2 capture areas: front side and bottom side

2 metal grease filter(s).

3 power levels & intensive setting

Automatic reset from intensive to normal setting after 6 min

Automatic after running (10 min)

Home Connect: operate, monitor and set preferences of your hood via smartphone or tablet (only in countries where Home Connect service is available)

Hob based hood control: automatically activates the hood when cooking, thanks to the WiFi connection of hood and suitable hob.

Smart Hood Automatic: Hood automatically adapts fan speed thanks to hob continuously providing cooking data (with matching hob and connected Home Connect account)

fully automatic hood

Voice Control enabled via popular voice assistants (only in countries where this service is available)

Performance Profiles: choose between standard, performance or silence profiles to increase the extraction rate or reduce the fan noise via Home Connect App

LED light with adjustable light temperature: Allows you to adapt the light temperature to your personal needs via Home Connect App

Saturation indicator, set and reset function for grease filter and odor filter available via Home Connect app.

After run function: available via Home Connect App

Interval function: available via Home Connect App

The Home Connect functionality can be extended by integrating numerous applications from external cooperation partners (partnerships)

Updateable appliance (available with connected Home Connect account): keep appliance always up to date with latest status of software.

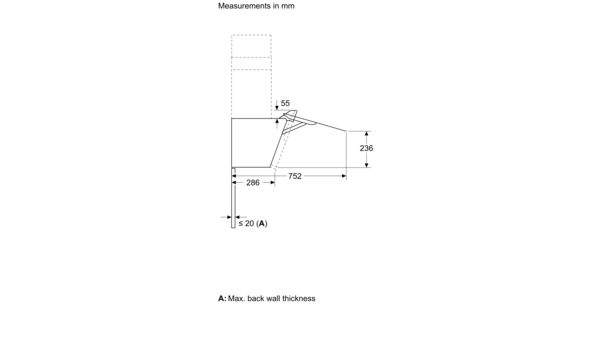

Large opening angle of the glass plate with locking function for an easy filter accessibility and easy cleaning.

Easy to clean smooth surfaces and materials.

Removable metal grease filters dishwasher-safe

According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in exhaust mode: Speed 1: extraction rate 223 m3/h; noise level 39 dB (A) re1pW Speed 2: extraction rate 319 m3/h; noise level 48 dB (A) re1pW Speed 3: extraction rate 431 m3/h; noise level 56 dB (A) re1pW Intensive 1: extraction rate 768 m3/h; noise level 68 dB (A) re1pW

Energy Efficiency Class: A+ (at a range of energy efficiency classes from A+++ to D)

Average Energy Consumption: 31.7 kWh/year*

Blower Efficiency Class: A*

Lighting Efficiency Class: A*

Grease Filtering Efficiency Class: C*

Consumption data:

Voltage: Nominal voltage: 220 - 240 V

Power rating: 140 W

Sustainability:

Made in Germany: produced at a CO2 neutral production site

Environmentally friendly packaging

Most efficient blower technology available on the market

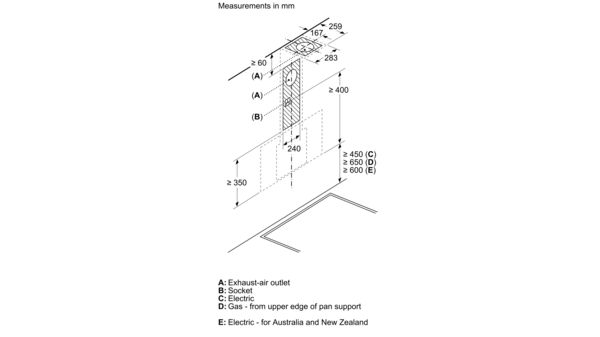

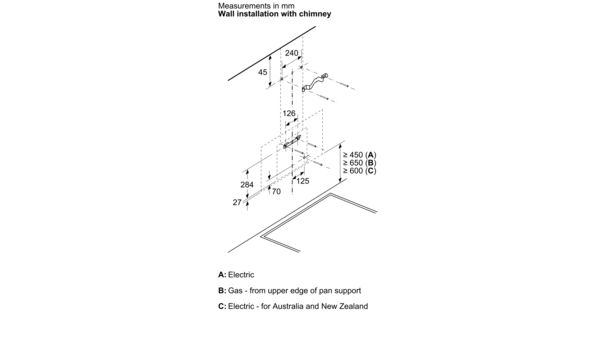

Dimensions exhaust air (HxWxD): 753-996 x 590 x 433 mm

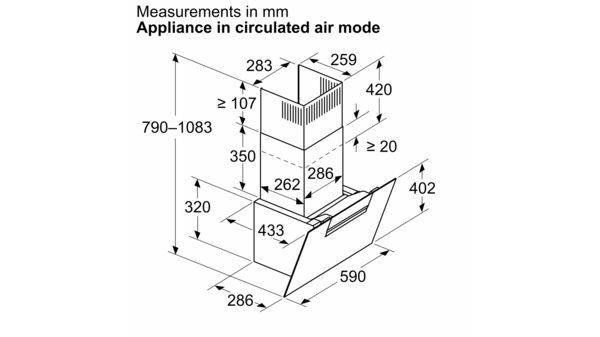

Dimensions recirculating (HxWxD): 790-1083 x 590 x 433 mm

Diameter pipe Ø 150 mm (Ø 150 mm enclosed)

Electrical cable length 1.3 m
