Service Page - DHL545SGB/01

Width

55 cm

Colour

Silver metallic

Installation typology

Built-in

Air circulation

Convertible

Total power of the motors

270 W

Type of control setting devices

Slide switch

Number of speed settings

3

Max. air extraction

380 m³/h

Boost position air extraction

490 m³/h

Sound power at max. speed (2010/30/EC)

61 dB

Sound power boost (2010/30/EC)

67 dB

Boost position output recirculating

380

Grease filter material

Washable aluminium

Energy efficiency rating

E

Total annual energy consumption

171.9 kWh/a

Height of the appliance

255-255/255-255 mm

Width of the appliance

530 mm

Depth

380 mm

Minimum distance above an electric hob

650 mm

Minimum distance above a gas hob

650 mm

Diameter of air outlet

120 / 150 mm

No-return airflow flap

No

Length electrical supply cord

130 cm

Net weight

8.4 kg

Appliance height exhaust air max

255 mm

Appliance height exhaust air min

255 mm

Appliance height recirculating max

255 mm

Appliance height recirculating min

255 mm

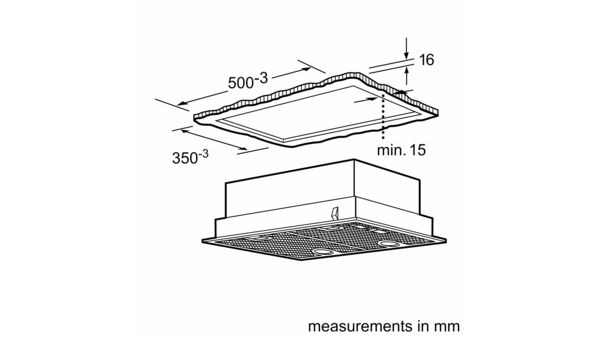

Minimum width for installation

500 mm

Maximum width for installation

500 mm

Depth for installation

350 mm

PrefectAir Sensor

No

Cooktop-based hood control

No

EcoSilence Drive - efficient and extra silent

No

Silence

No

Boost position

Yes

Remote control

No

Type of lamps used

Halogen

Number of lights

2

Total power of the lamps

40 W

Total luminance

335 lux

Illumination type softlight

No

emotionLight Pro

No

Home Connect

No
