Technical Overview
Installation typology
Island
Width
90 cm
Cooktop-based hood control
No
Sound pressure recirculated air level 2
55 dB(A) re 1 pW
PrefectAir Sensor
Yes
Air circulation
Convertible
Max. air extraction
445 m³/h
Boost position air extraction
867 m³/h
Specifications
Width
90 cm
Colour
Stainless steel
Installation typology
Island
Air circulation
Convertible
Total power of the motors
160 W
Type of control setting devices
Touch control
Number of speed settings
3-stage + 2 intensive
Max. air extraction
445 m³/h
Boost position air extraction
867 m³/h
Sound power at max. speed (2010/30/EC)
54 dB
Sound power boost (2010/30/EC)
69 dB
Max. air recirculation
353 m³/h
Boost position output recirculating
457 m³/h
Sound power at max. speed (recirculation)
67 dB
Sound power boost (recirculation)
71 dB
Grease filter material
Washable stainless steel
Energy efficiency rating
A+
Total annual energy consumption
31.9 kWh/annum
Included user manuals
[EN]

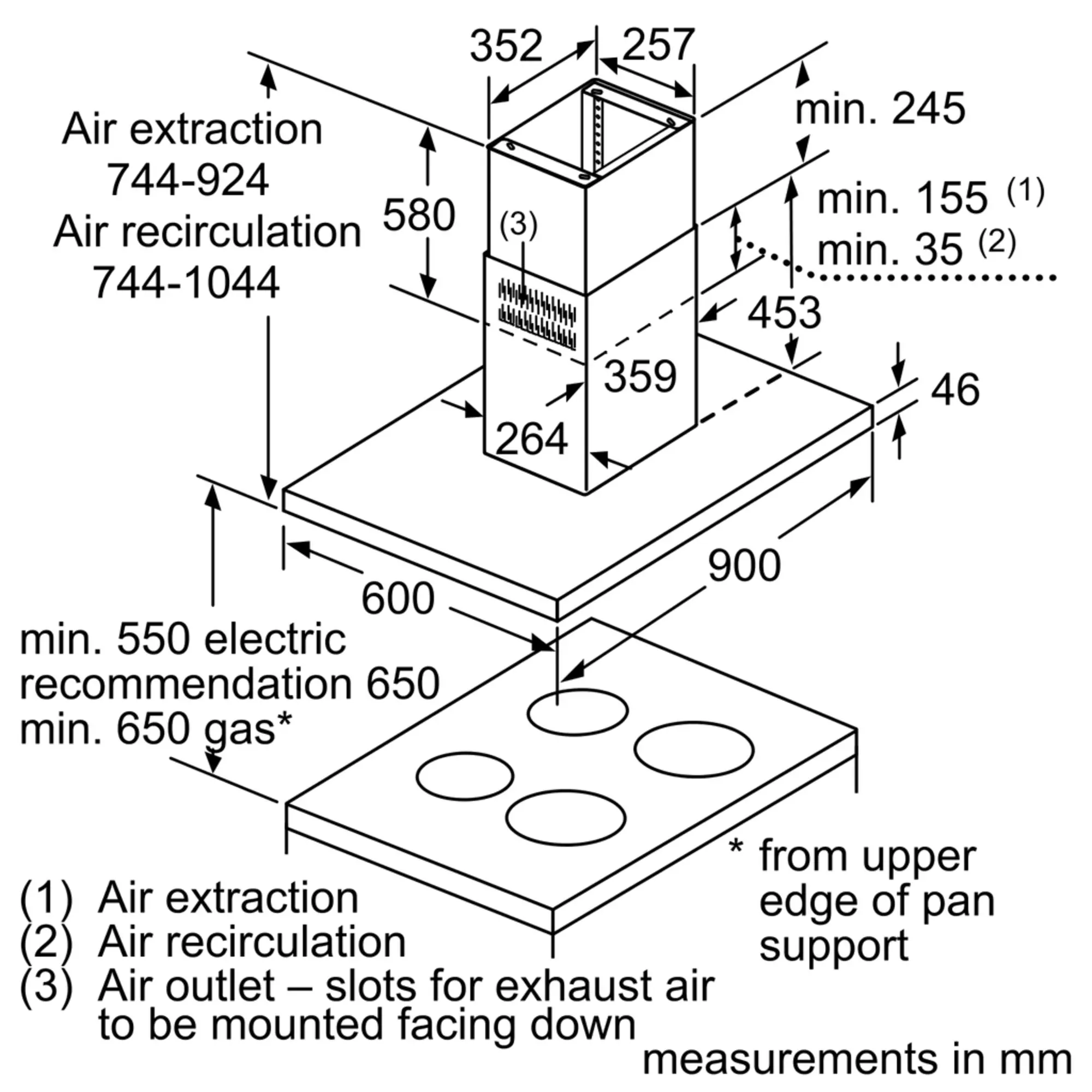

Height of the appliance
46 mm
Width of the appliance
898 mm
Depth
600 mm
Dimensions of the packed product (HxWxD)
840x610x1040 mm
Height of the chimney
698-878/698-998 mm
Minimum distance above an electric hob
550 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
28.7 kg
Handle bar
N/A
Appliance height exhaust air max
924 mm
Appliance height exhaust air min
744 mm
Appliance height recirculating max
1044 mm
Appliance height recirculating min
744 mm
1 / 0
PrefectAir Sensor
Yes
SilentPowerDrive - efficient and extra silent
Yes
Silence
Yes
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Number of lights
4
Total luminance
423 lux
Colour temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Cooktop-based hood control
No
Smart Hood Automatic
No
