Technical Overview
Installation typology
Built-in
Width
70 cm
Cooktop-based hood control
No
Noise level
63 dB(A) re 1 pW
PrefectAir Sensor
No
Air circulation
Convertible
Max. air extraction
595 m³/h
Boost position air extraction
730 m³/h
Key Features
Specifications
Width
70 cm
Colour
Black
Installation typology
Built-in
Air circulation
Convertible
Total power of the motors
250 W

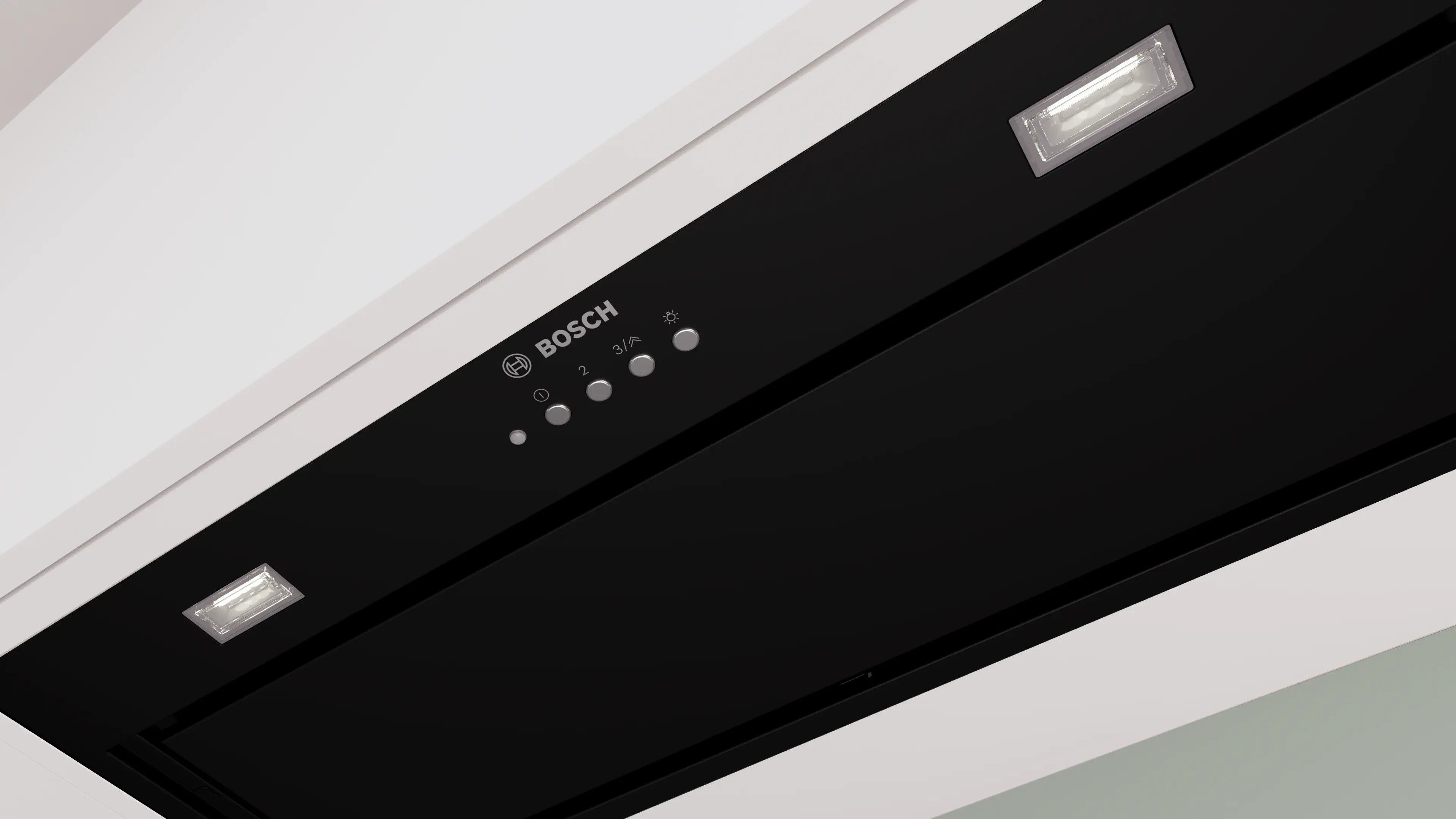

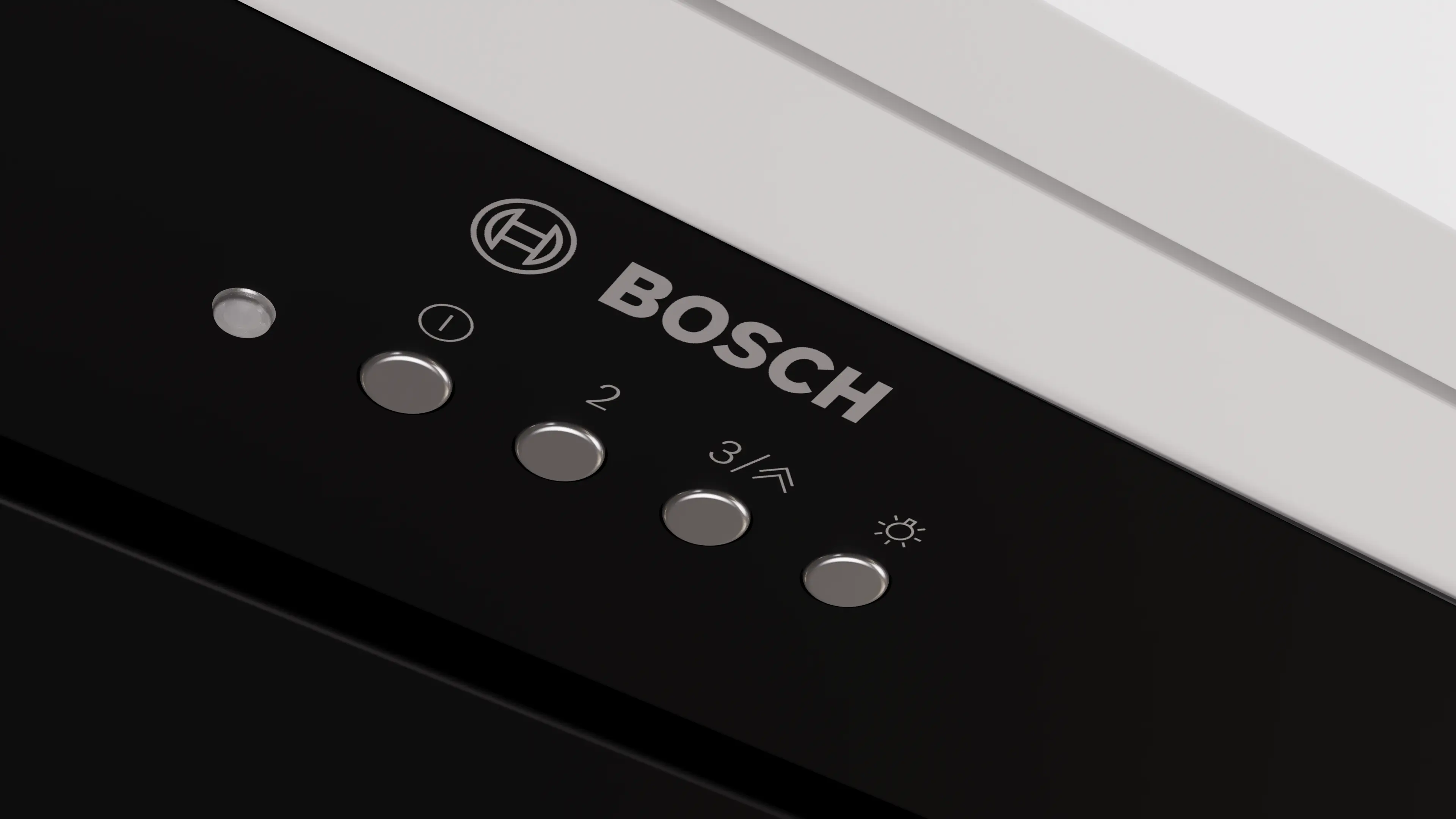

Type of control setting devices
Button
Number of speed settings
3-stages + intensive setting
Max. air extraction
595 m³/h
Boost position air extraction
730 m³/h
Sound power at max. speed (2010/30/EC)
63 dB
Sound power boost (2010/30/EC)
68 dB
Max. air recirculation
580 m³/h
Boost position output recirculating
705 m³/h
Sound power at max. speed (recirculation)
70 dB
Sound power boost (recirculation)
73 dB

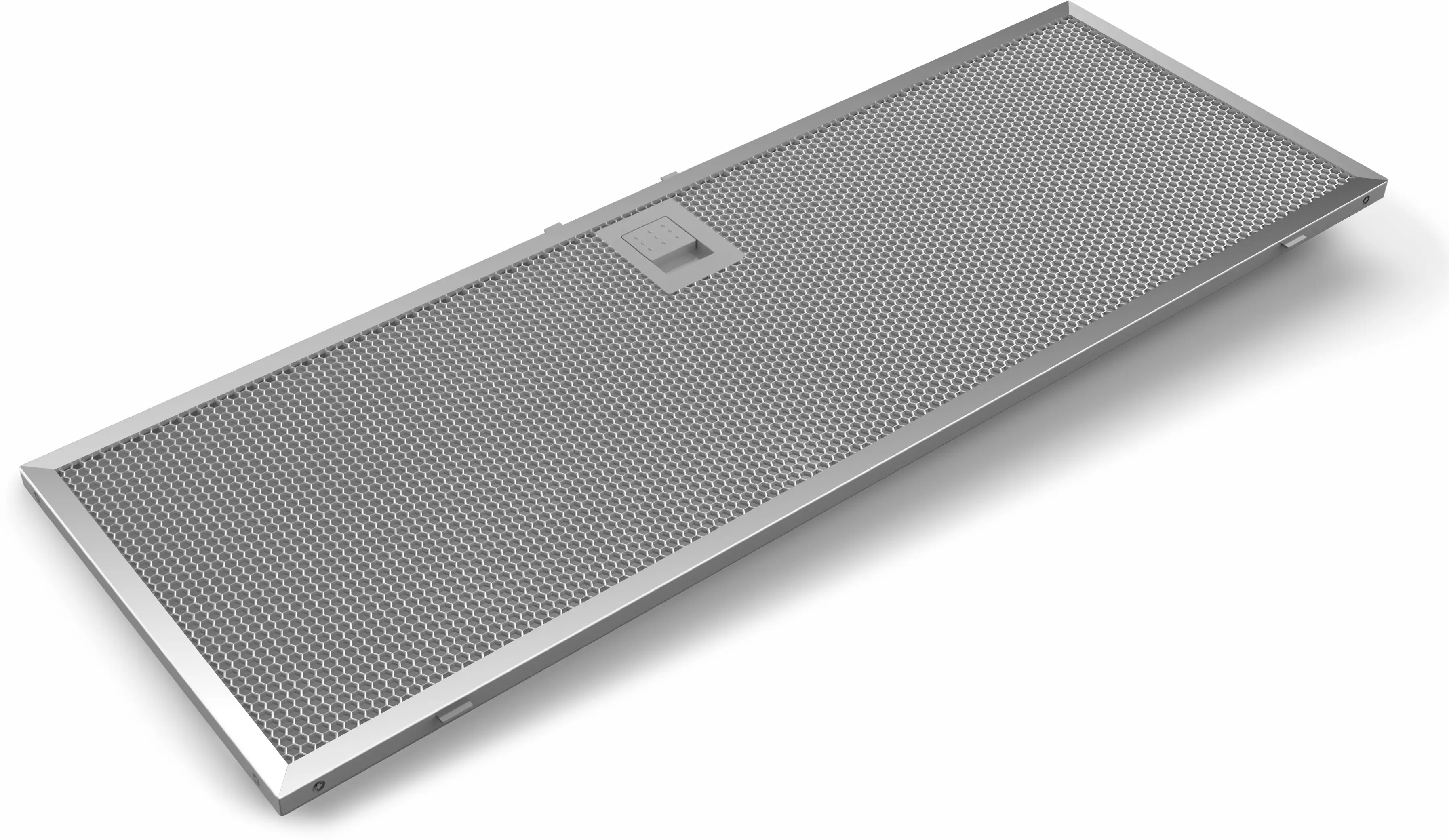

Grease filter material
Washable aluminium
Energy efficiency rating
A
Total annual energy consumption
55.5 kWh/annum
Included user manuals
[EN]
Voltage
220-240 V

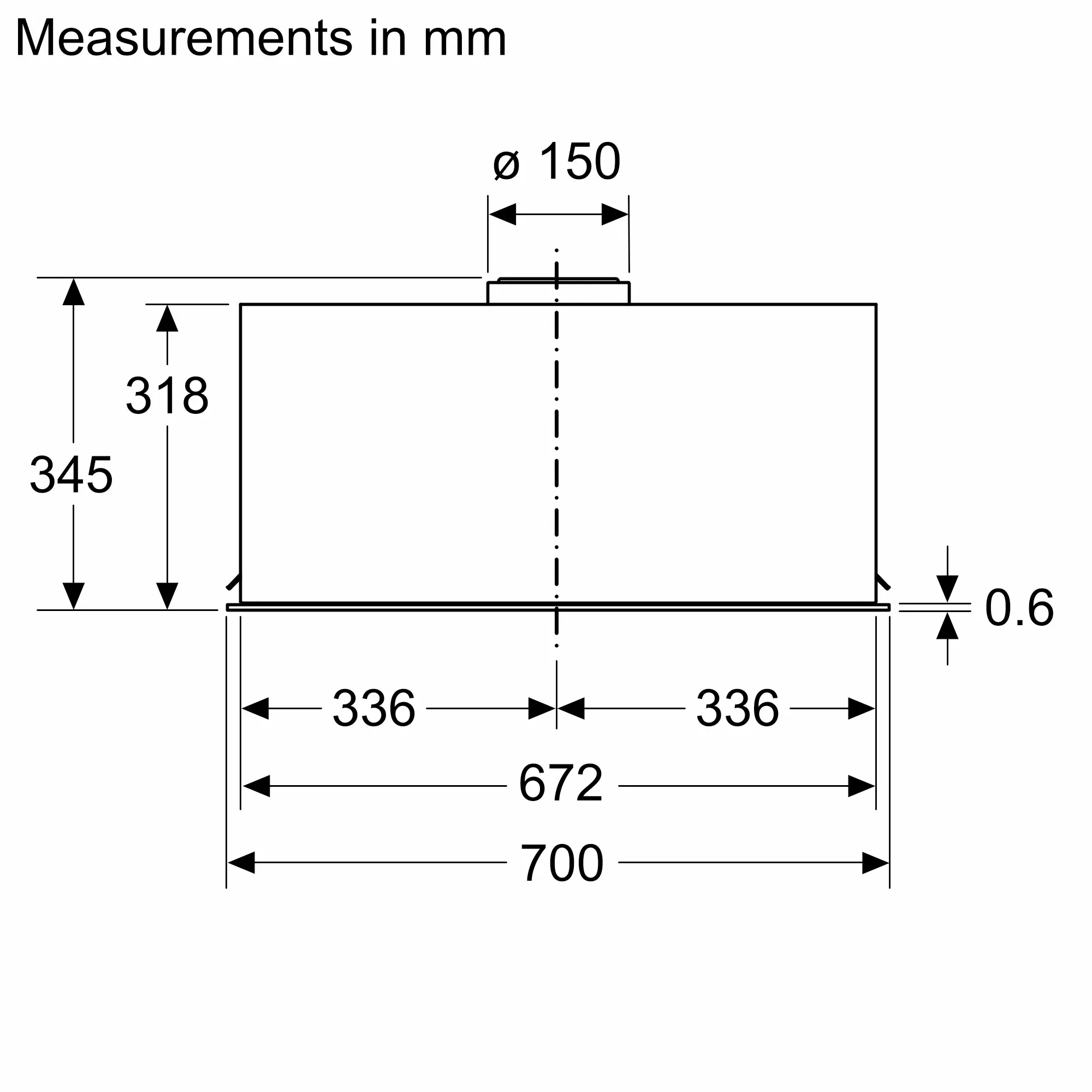

Height of the appliance
345 mm
Width of the appliance
700 mm
Depth
282 mm
Dimensions of the packed product (HxWxD)
385x787x480 mm
Height of the chimney
GENERAL.N_A mm
Minimum distance above an electric hob
500 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
Yes
Length electrical supply cord
150 cm
Net weight
9.1 kg
Handle bar
N/A
Appliance height exhaust air max
345 mm
Appliance height exhaust air min
345 mm
Appliance height recirculating max
345 mm
Appliance height recirculating min
345 mm

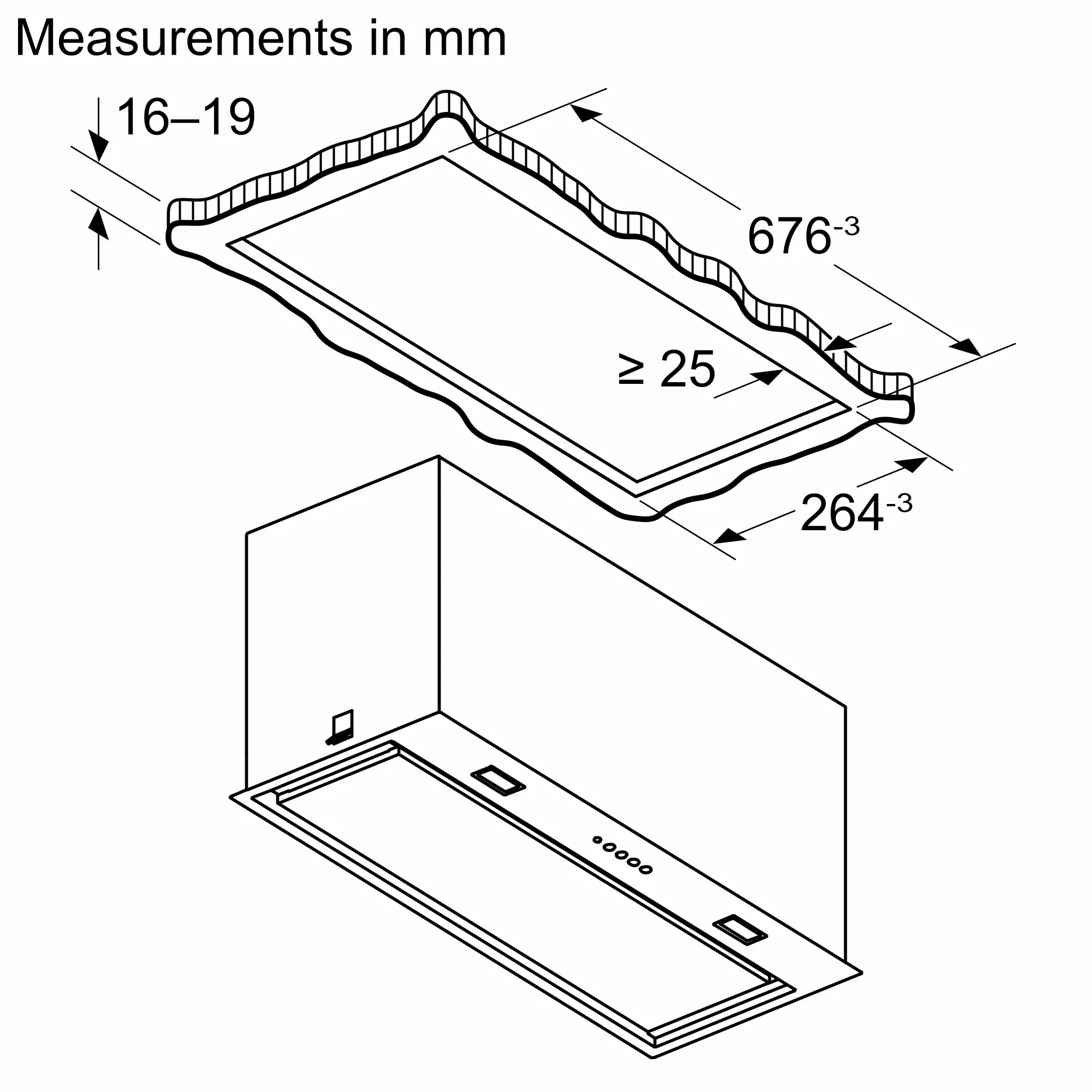

Maximum width for installation
676 mm
Minimum width for installation
676 mm
Depth for installation
264 mm
1 / 0
PrefectAir Sensor
No
SilentPowerDrive - efficient and extra silent
No
Silence
No
Clean filter reminders
No
Boost position
Yes
Delay Shut off modes
No
Remote control
No
Type of lamps used
LED
Number of lights
2
Total power of the lamps
2 W
Total luminance
400 lux
Colour temperature
Neutral (3.500 K)
Illumination type softlight
No
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Cooktop-based hood control
No
Smart Hood Automatic
No
