Series 6 Integrated Design Hood 90 cm clear glass black printed, BlackDBB97AM60B
DBB97AM60B
1 / 0
Series 6 Integrated Design Hood 90 cm clear glass black printed, BlackDBB97AM60B
DBB97AM60B
Datasheet
Where to buy
Show all online retailersIn case you click on the "Visit retailer's store" button your purchase process will be followed. See the data protection clause. By using the "Visit Retailer Store" key you accept the tracking of your purchase.
Series 6 Integrated Design Hood 90 cm clear glass black printed, BlackDBB97AM60B
DBB97AM60B
Datasheet
Where to buy
Show all online retailersIn case you click on the "Visit retailer's store" button your purchase process will be followed. See the data protection clause. By using the "Visit Retailer Store" key you accept the tracking of your purchase.
Technical Overview
Installation typology
Built-in
Width
90 cm
Cooktop-based hood control
No
Noise level
63 dB(A) re 1 pW
PrefectAir Sensor
No
Air circulation
Convertible
Max. air extraction
460 m³/h
Boost position air extraction
749 m³/h
Key Features
Specifications
Width
90 cm
Colour
Black
Installation typology
Built-in
Air circulation
Convertible
Total power of the motors
250 W
Type of control setting devices
Touch control
Number of speed settings
3-stages + intensive setting
Max. air extraction
460 m³/h
Boost position air extraction
749 m³/h
Sound power at max. speed (2010/30/EC)
63 dB
Sound power boost (2010/30/EC)
73 dB
Max. air recirculation
451 m³/h
Boost position output recirculating
652 m³/h
Sound power at max. speed (recirculation)
67 dB
Sound power boost (recirculation)
74 dB

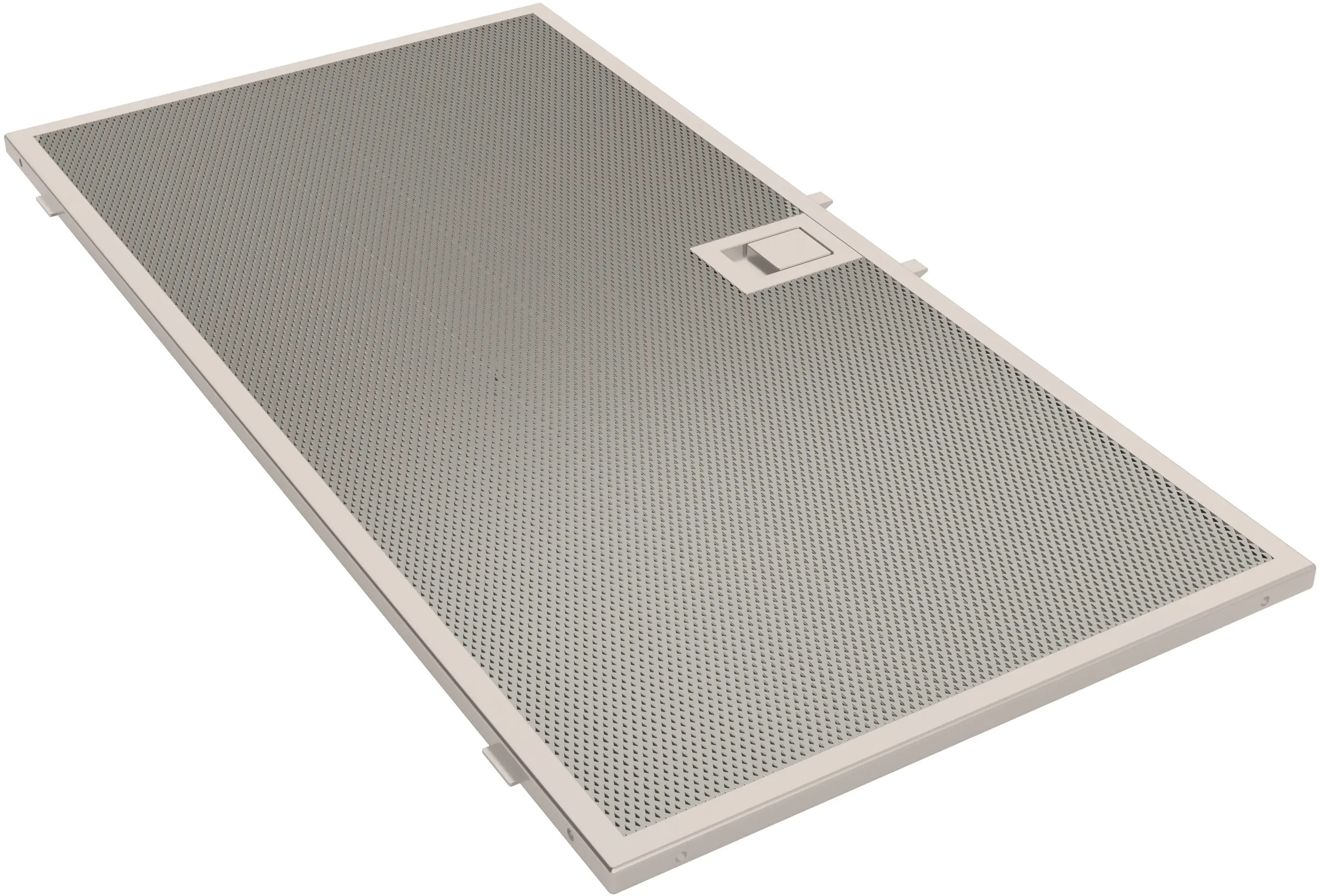

Grease filter material
Washable stainless steel
Energy efficiency rating
B
Total annual energy consumption
64.7 kWh/annum
Included user manuals
[EN]
Voltage
220-240 V
Height of the appliance
60 mm
Width of the appliance
897 mm
Depth
298 mm
Dimensions of the packed product (HxWxD)
574x654x974 mm
Height of the chimney
GENERAL.N_A mm
Minimum distance above an electric hob
430 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
Yes
Length electrical supply cord
130 cm
Net weight
10.6 kg
Handle bar
N/A
Appliance height exhaust air max
340 mm
Appliance height exhaust air min
340 mm
Maximum width for installation
860 mm
Minimum width for installation
860 mm
Depth for installation
300 mm
1 / 0
PrefectAir Sensor
No
SilentPowerDrive - efficient and extra silent
No
Silence
No
Clean filter reminders
No
Boost position
Yes
Delay Shut off modes
No
Remote control
No
Type of lamps used
N/A

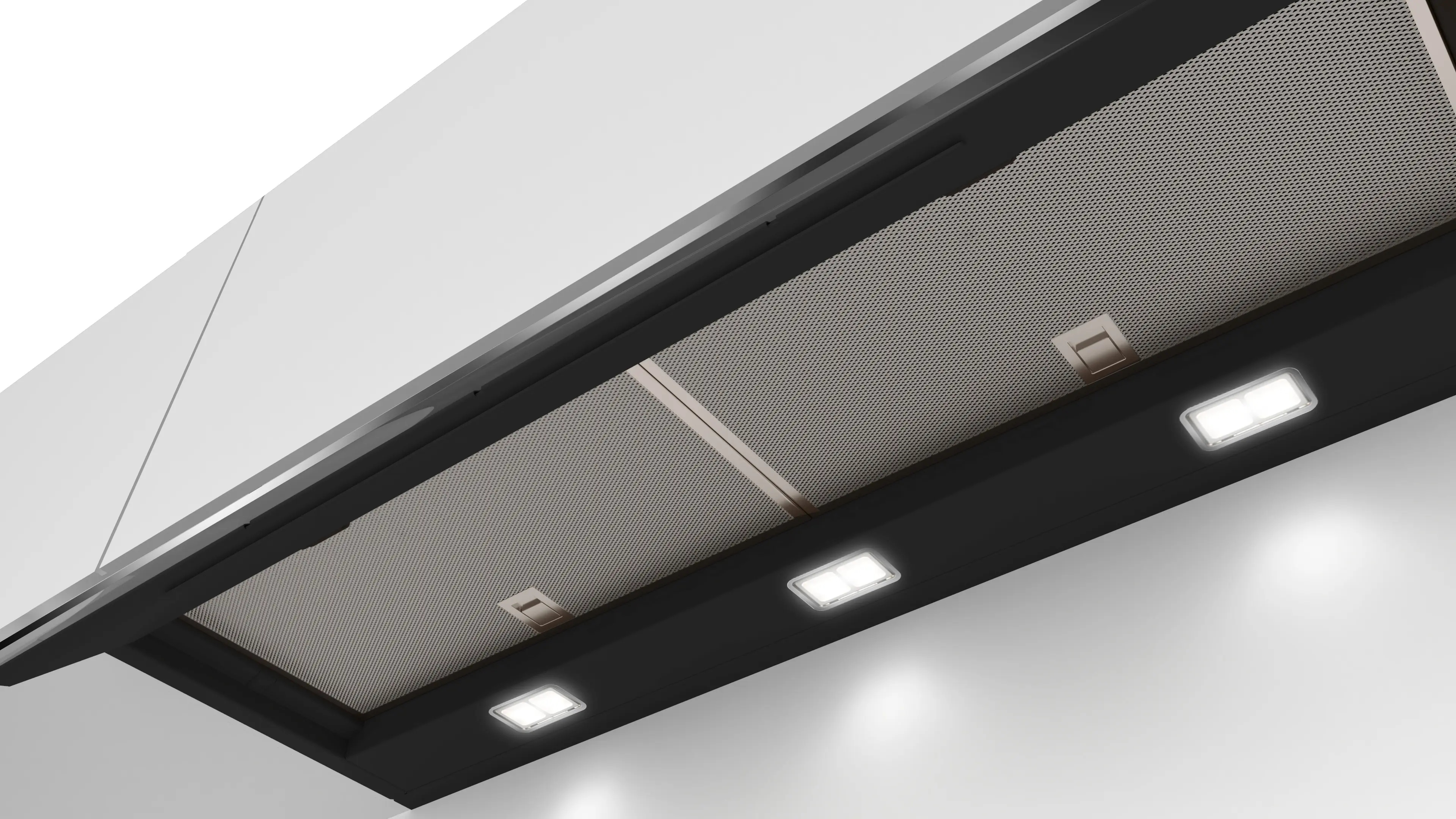

Number of lights
3
Total power of the lamps
9 W
Total luminance
517 lux
Colour temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Cooktop-based hood control
No
Smart Hood Automatic
No
