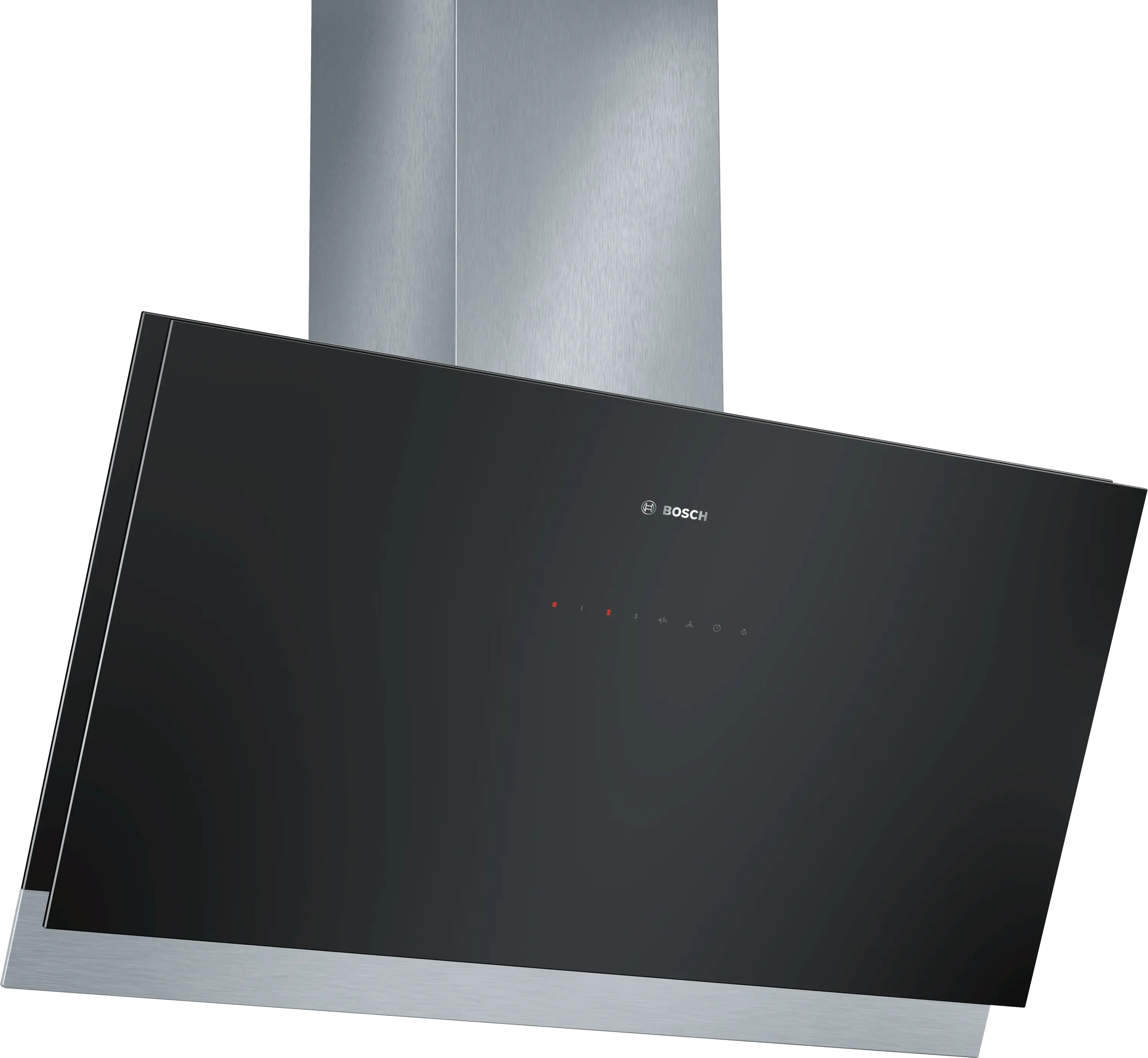

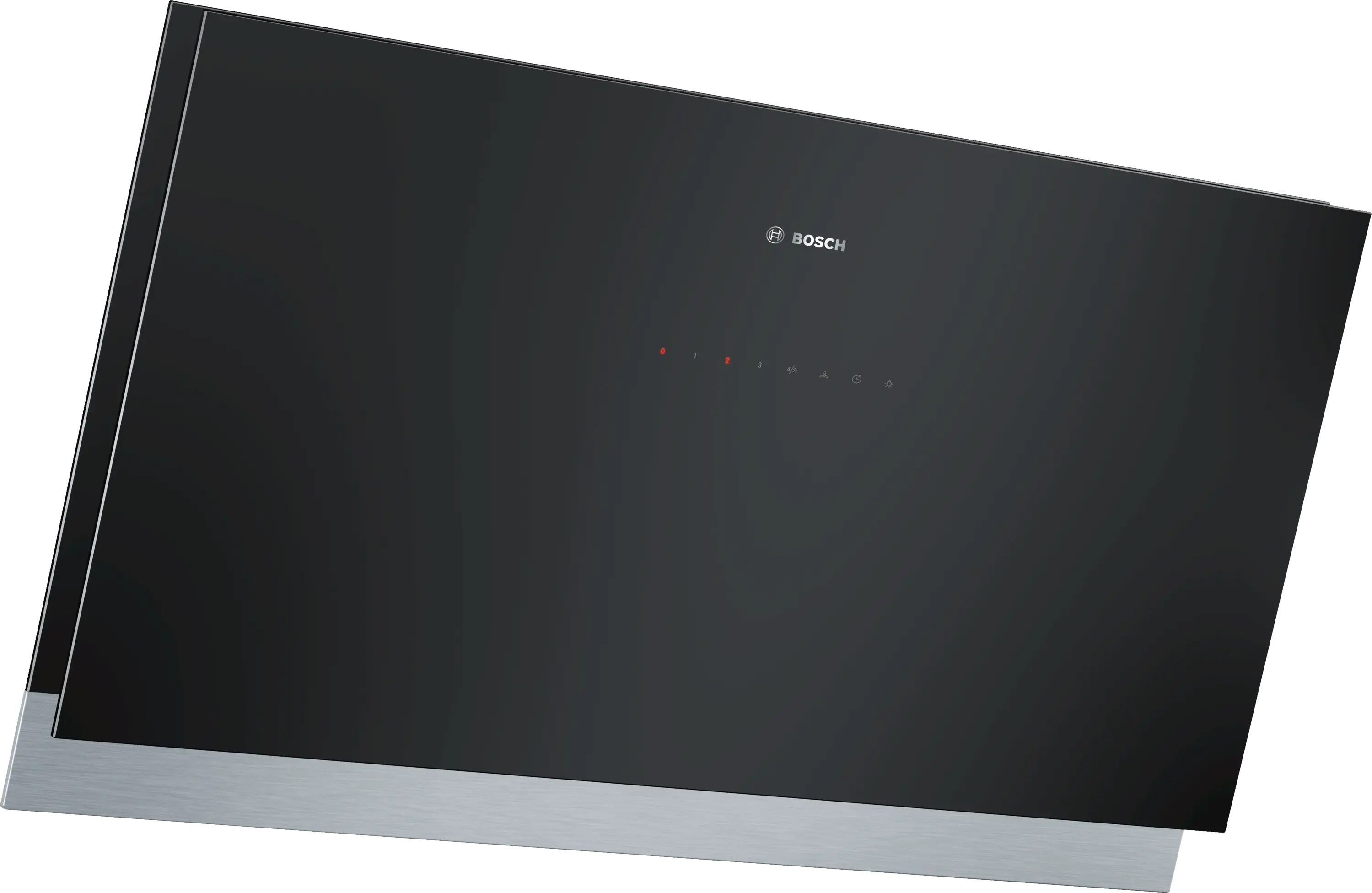

Photo Nr. 1 of the product DWK098G61B

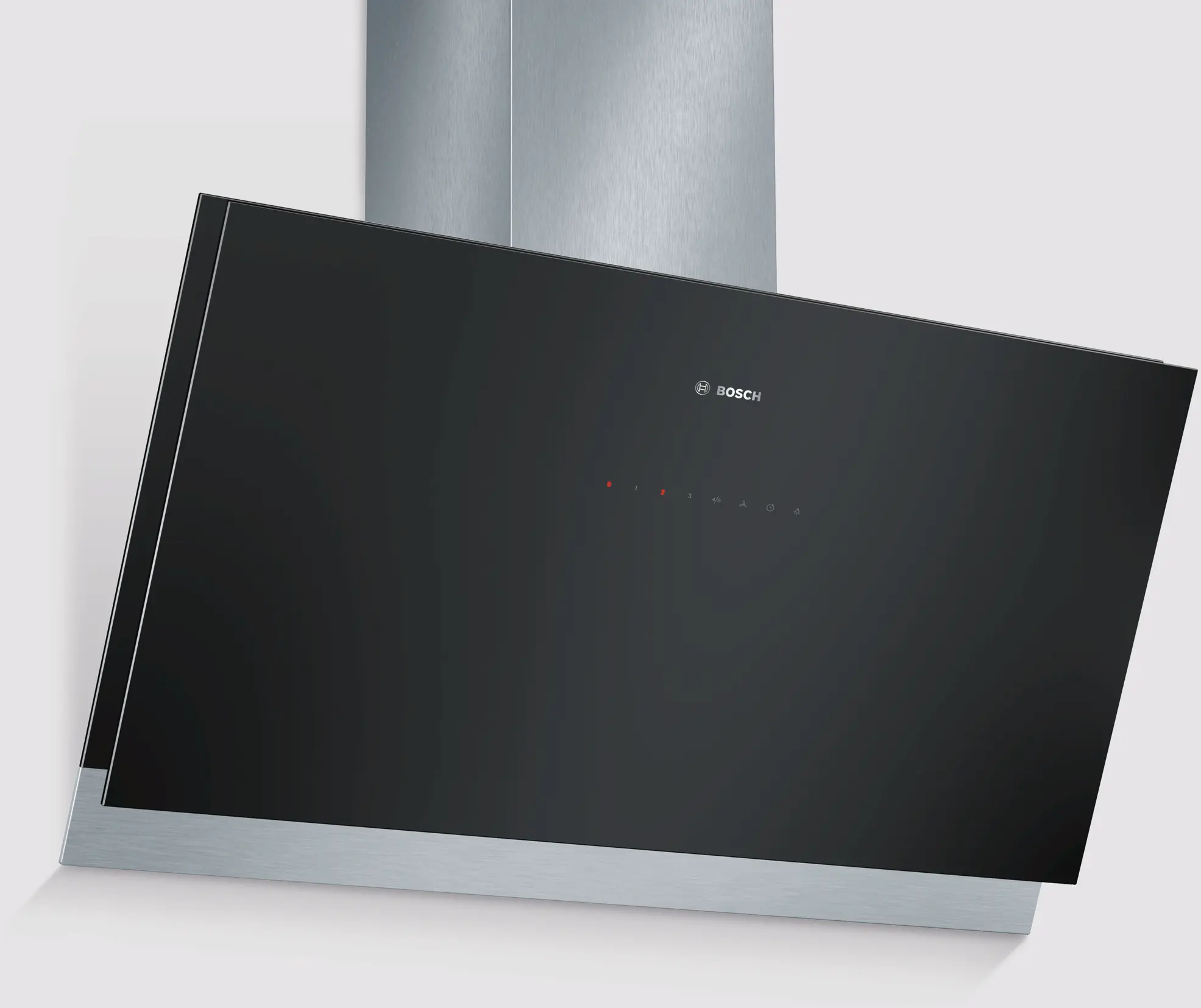

Photo Nr. 2 of the product DWK098G61B

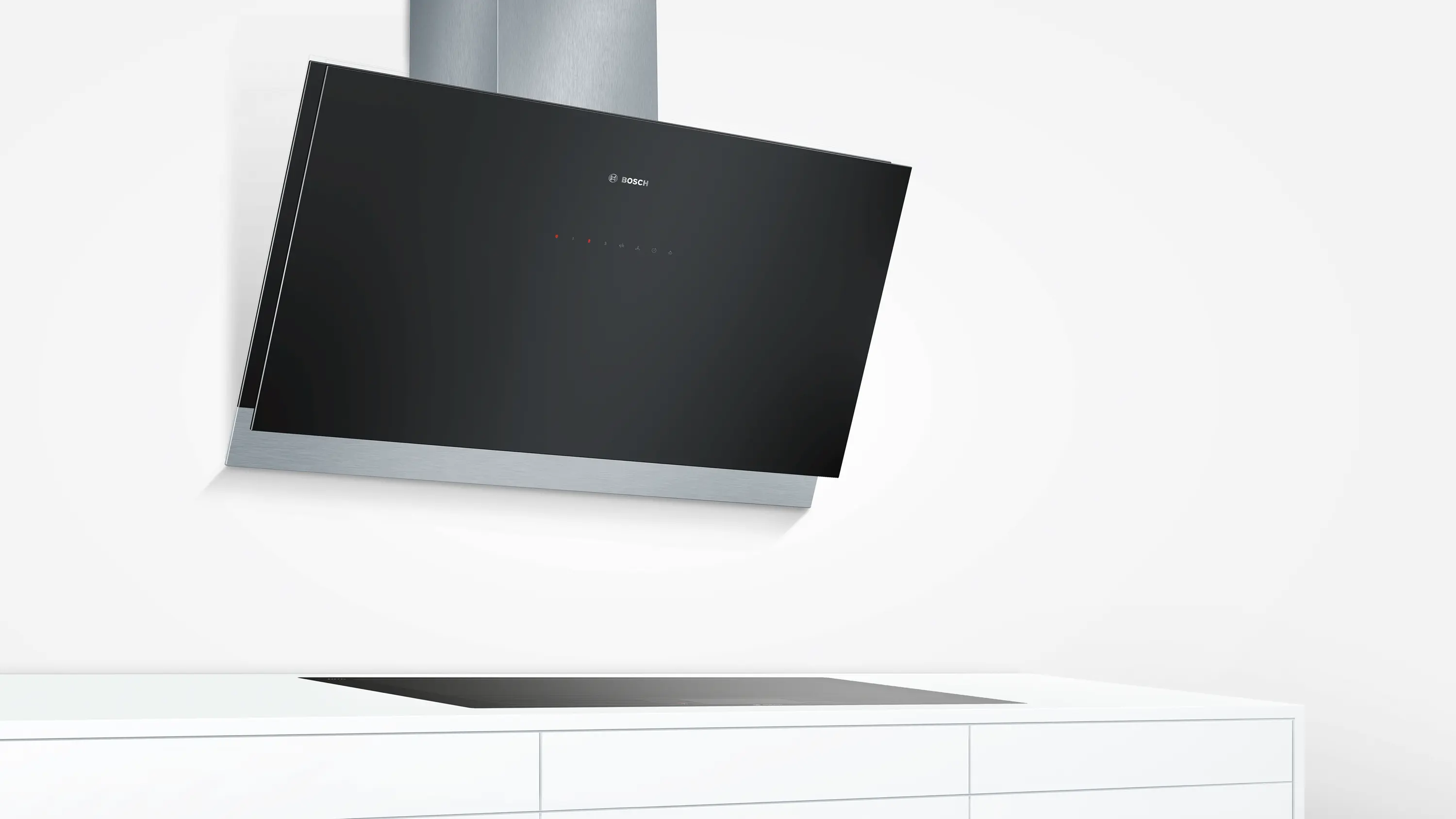

Photo Nr. 3 of the product DWK098G61B
Photo Nr. 4 of the product DWK098G61B
Photo Nr. 5 of the product DWK098G61B
Photo Nr. 6 of the product DWK098G61B
Photo Nr. 7 of the product DWK098G61B
DWK098G61B

Product is no longer available

More information and services related to this product

DWK098G61B

Product is no longer available

More information and services related to this product

Technical Overview

Installation typology
Wall-mounted
Width
90 cm
Cooktop-based hood control
No
Sound pressure recirculated air level 2
52 dB(A) re 1 pW
PrefectAir Sensor
No

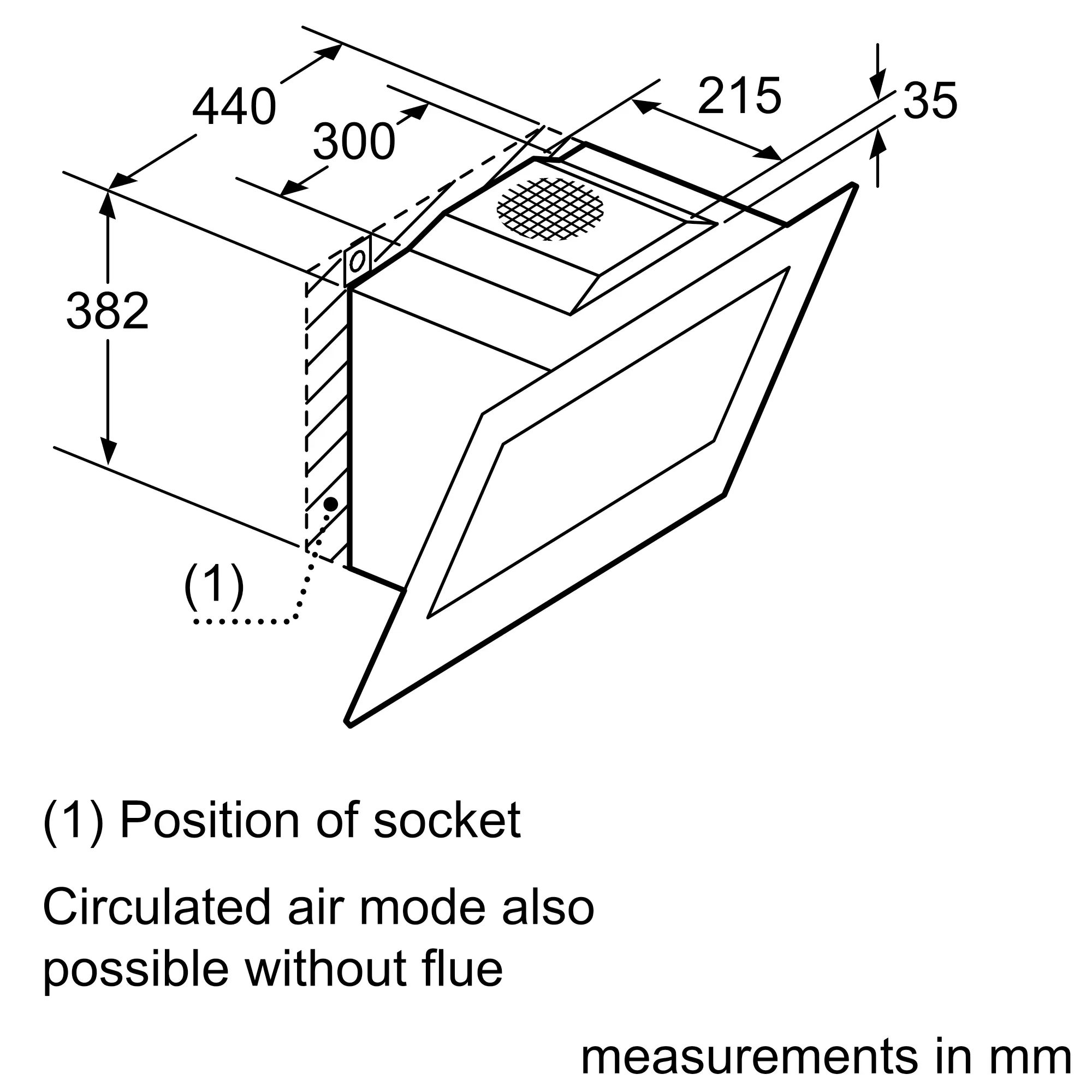

Air circulation
Convertible
Max. air extraction
630 m³/h
Boost position air extraction
850 m³/h

Specifications

Width
90 cm
Colour
Black
Installation typology
Wall-mounted
Air circulation
Convertible
Total power of the motors
270 W
Type of control setting devices
LED, touch control
Number of speed settings
4-stage + 1 intensive
Max. air extraction
630 m³/h
Boost position air extraction
850 m³/h
Sound power at max. speed (2010/30/EC)
67 dB
Sound power boost (2010/30/EC)
73 dB
Max. air recirculation
410 m³/h
Boost position output recirculating
480.0 m³/h
Sound power at max. speed (recirculation)
70 dB
Sound power boost (recirculation)
77 dB
Grease filter material
Washable aluminium
Energy efficiency rating
A
Total annual energy consumption
50.2 kWh/annum
Height of the appliance
382 mm
Width of the appliance
900 mm
Depth
391 mm
Dimensions of the packed product (HxWxD)
695 x 655 x 1010 mm
Height of the chimney
580-920/580-1030 mm

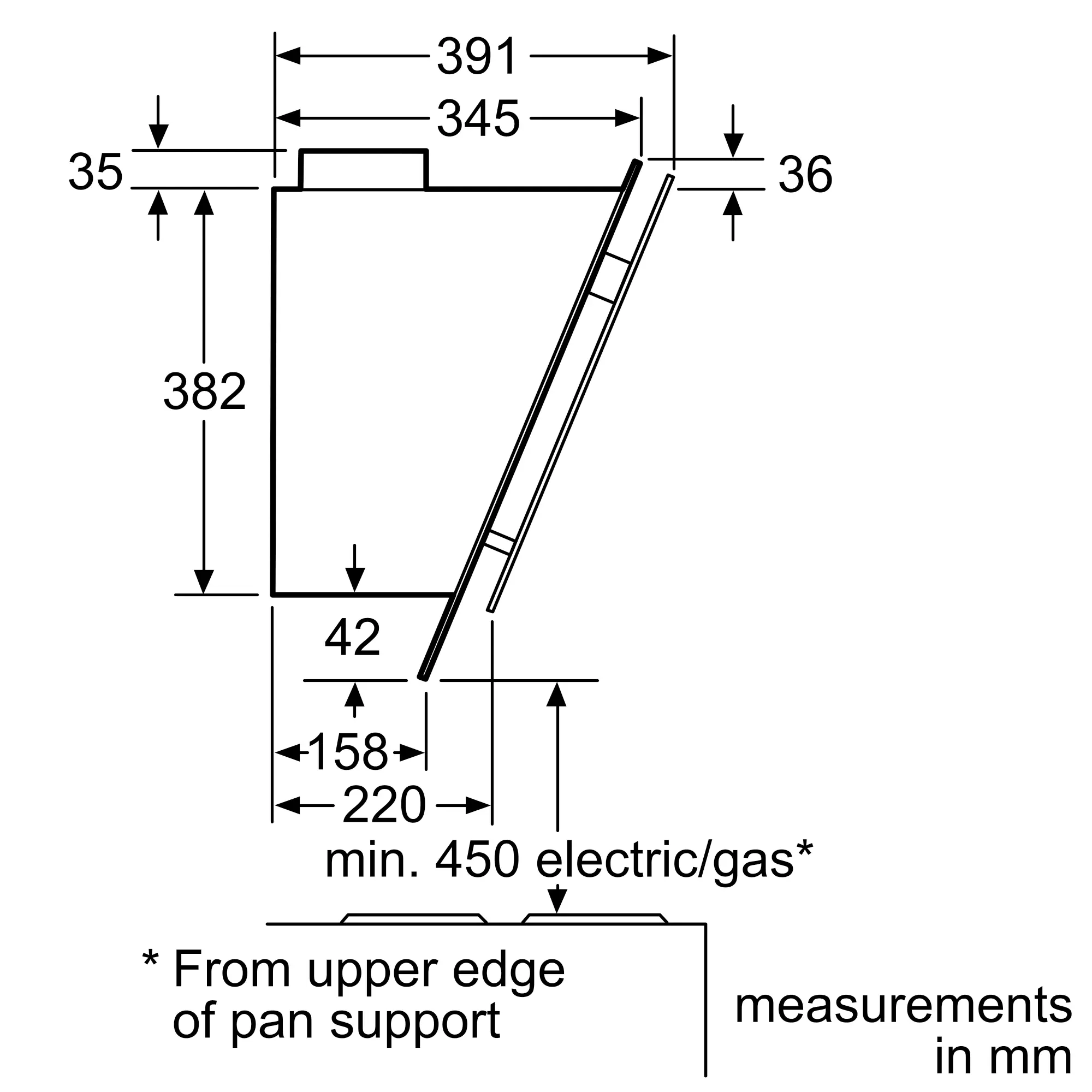

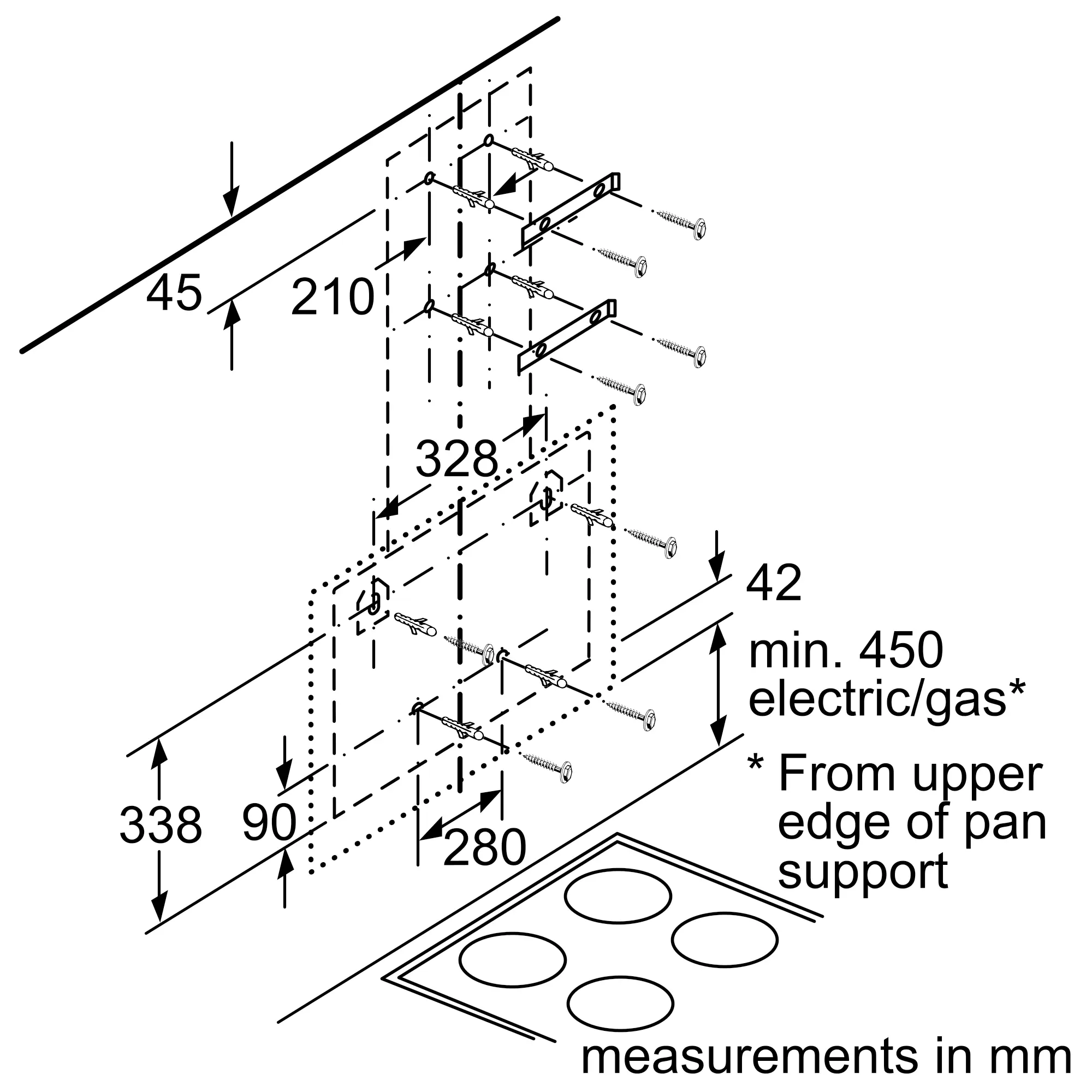

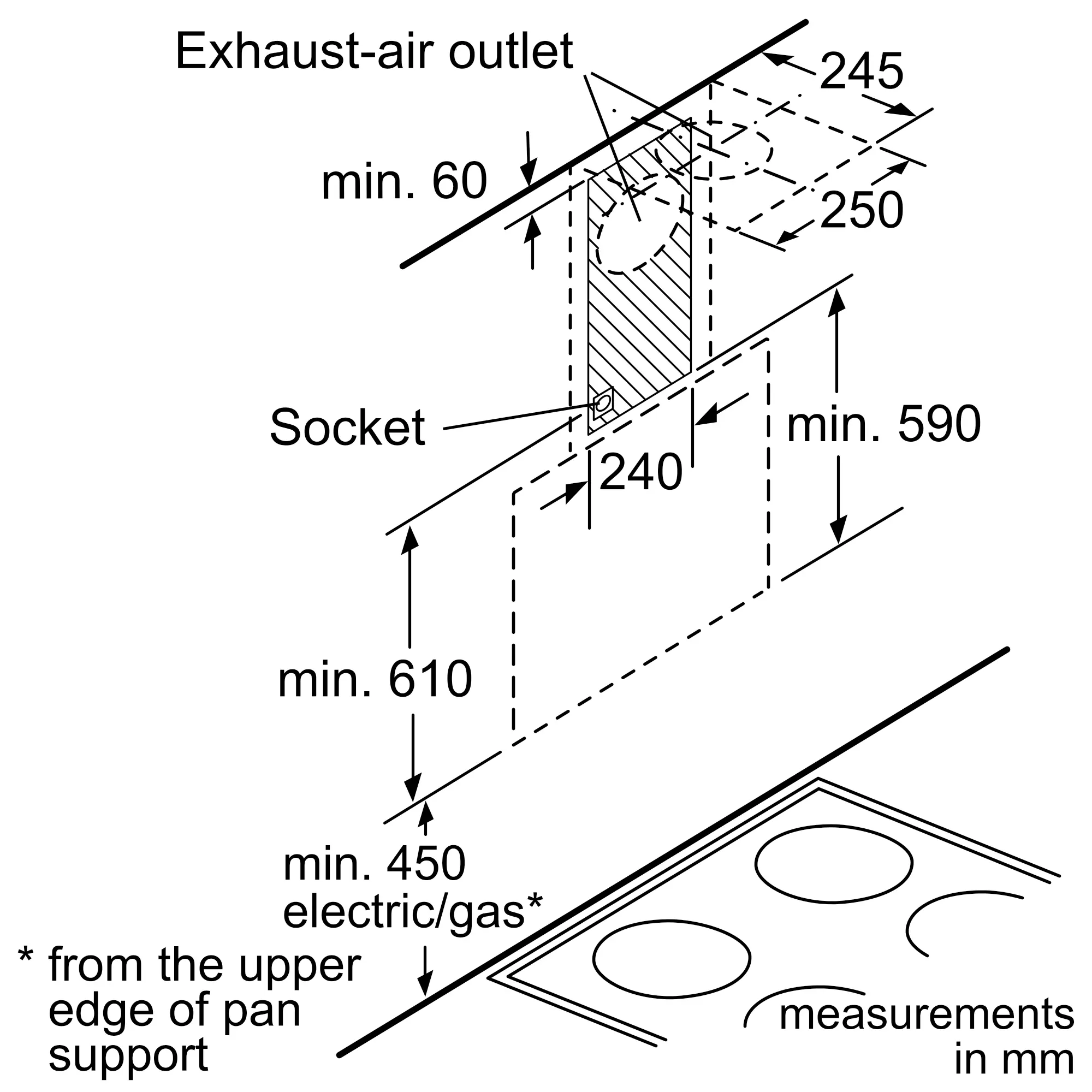

Minimum distance above an electric hob
450 mm
Minimum distance above a gas hob
450 mm

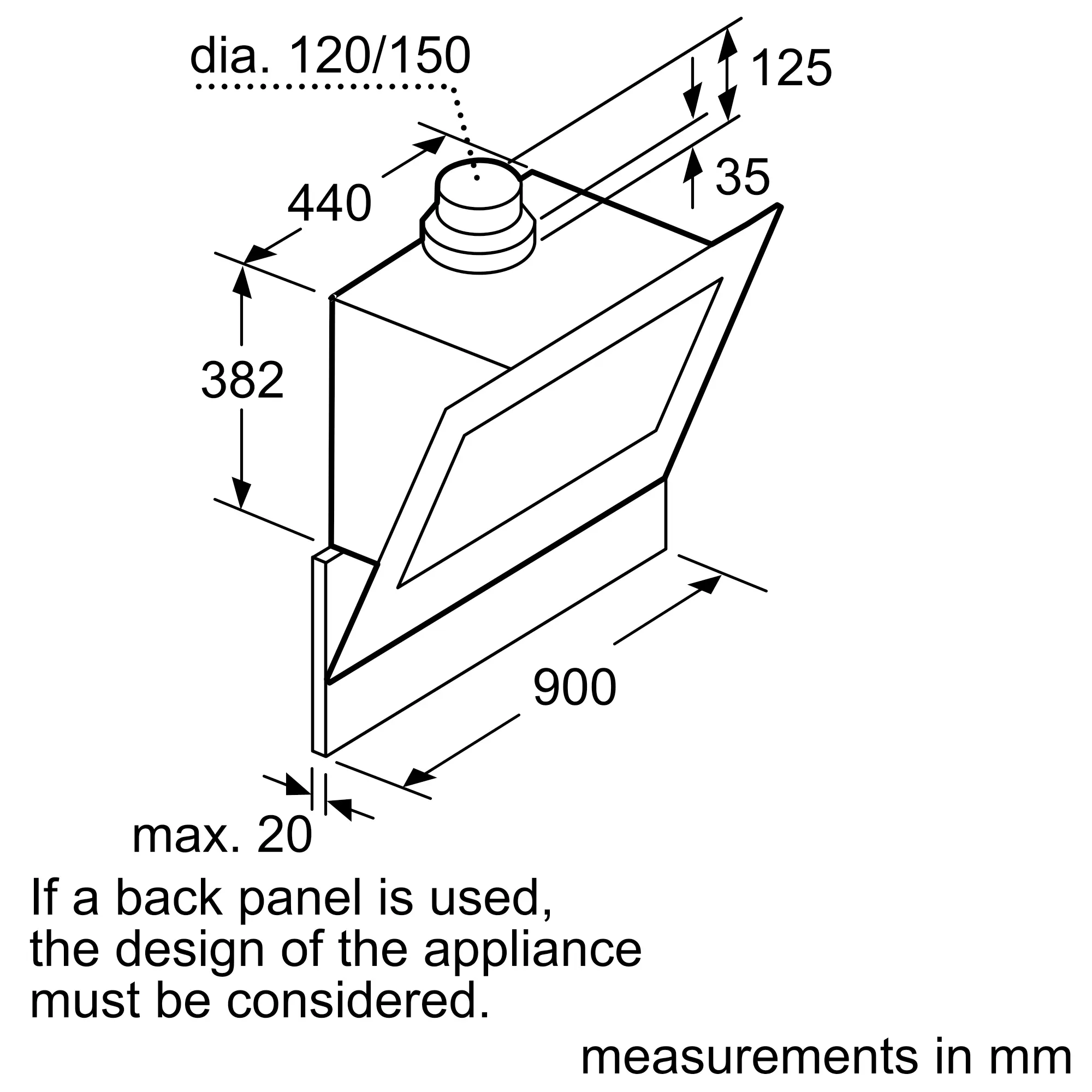

Diameter of air outlet
120 / 150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
21.0 kg
Handle bar
N/A

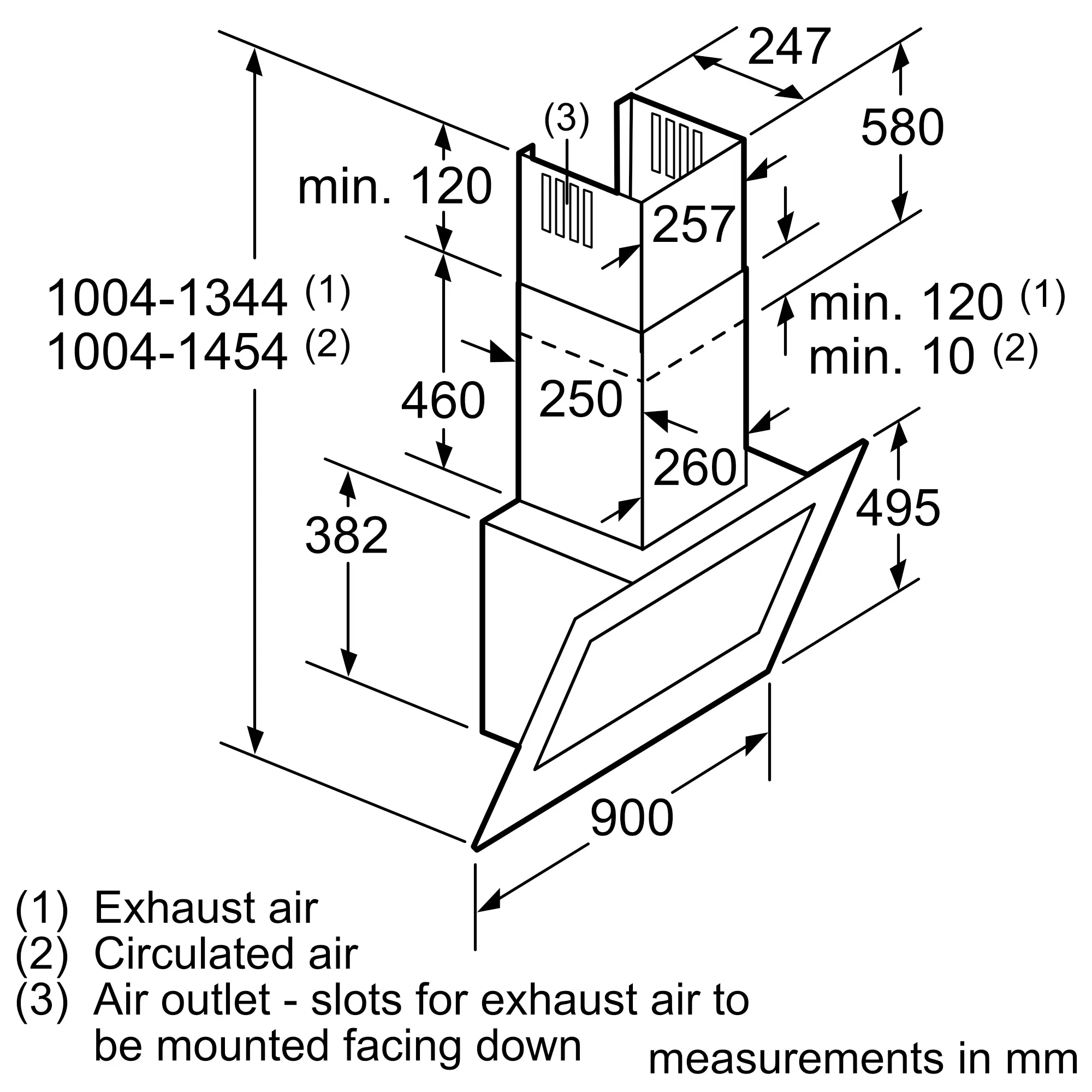

Appliance height exhaust air max
1344 mm
Appliance height exhaust air min
1004 mm
Appliance height recirculating max
1454 mm
Appliance height recirculating min
1004 mm
1 / 0
Photo Nr. 1 of the product
Photo Nr. 2 of the product
Photo Nr. 3 of the product
Photo Nr. 4 of the product
Photo Nr. 5 of the product
Photo Nr. 6 of the product
PrefectAir Sensor
No
SilentPowerDrive - efficient and extra silent
Yes
Silence
No
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Number of lights
2
Total power of the lamps
2 W
Total luminance
209 lux
Colour temperature
Cold white (4.000 K)
Illumination type softlight
No
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Cooktop-based hood control
No
Smart Hood Automatic
No
