Gas Hob Installation

Modern kitchen with gas stove, wooden cabinets, and dining table in bright, airy space.

Here you will find tips on how to install your new appliance. Be aware that installation methods and measurements may vary from model to model. It's important to check the installation manual for model-specific details.

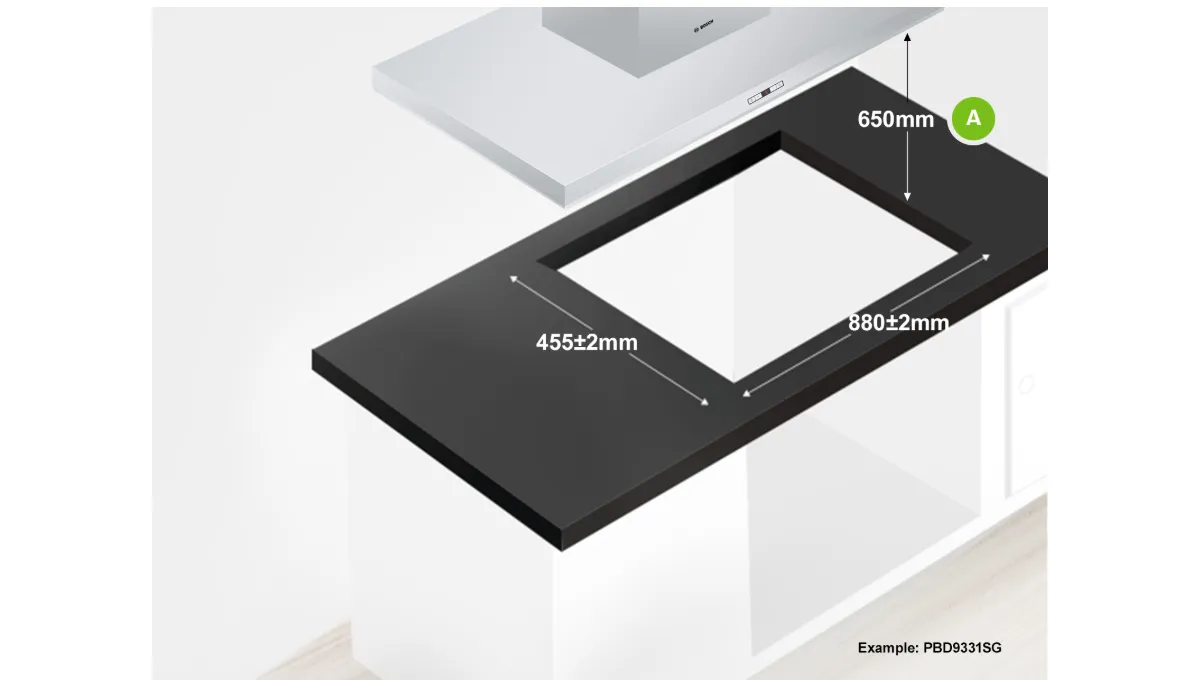

Carving a niche

To hold the hob in place, the length and width of niches must be shorter than that of the appliance itself. Refer to the installation instructions for more details.

Additionally, a radial cut-out is recommended as it is structurally stronger compared to an angular cut-out.
If you are installing the gas cook-top underneath an extractor hood, please take note of the minimum height A found in each appliance model's instruction manual.

Rectangular black countertop with dimensions 880x455mm, white sink, and measurement annotations.

Installation options

1. Above a drawer

1. The worktop must have a minimum thickness of 20mm.
2. Ensure there is a minimum distance of 65mm between the top of the worktop and the top of the drawer for ventilation.
3. The minimum running length of the drawer is 480mm.

Black rectangular platform with dimensions 20mm x 65mm, on a white background.

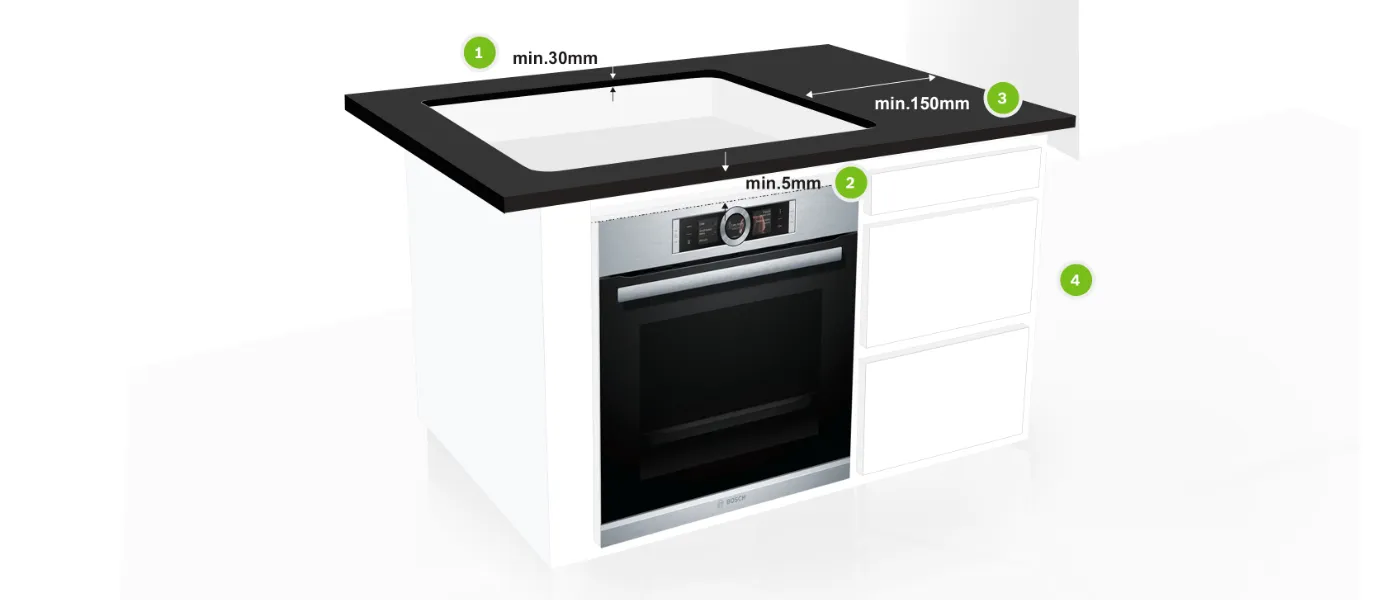

2. Above an oven

1. The worktop must have a minimum thickness of 30mm.
2. For sufficient ventilation, ensure there is a minimum gap of 5mm from the bottom of the hob to the top of the oven.
3. The minimum distance between the hob and the side wall is 150mm.
4. During installation, ensure that the gas pipe is installed on the left side of the hob. The powerpoint should be situated on the right side of the hob.

Built-in oven with dimensions and features labeled.
