Here you will find tips on how to install your new appliance. Be aware that installation methods and measurements may vary from model to model. It's important to check the installation manual for model-specific details.

Installing the gas domino hobs

1. There should be a distance of at least 70mm between the cabinet and table top.
2. The gas hob must be at least 70mm away from the side wall, to provide space for the gas pipe.

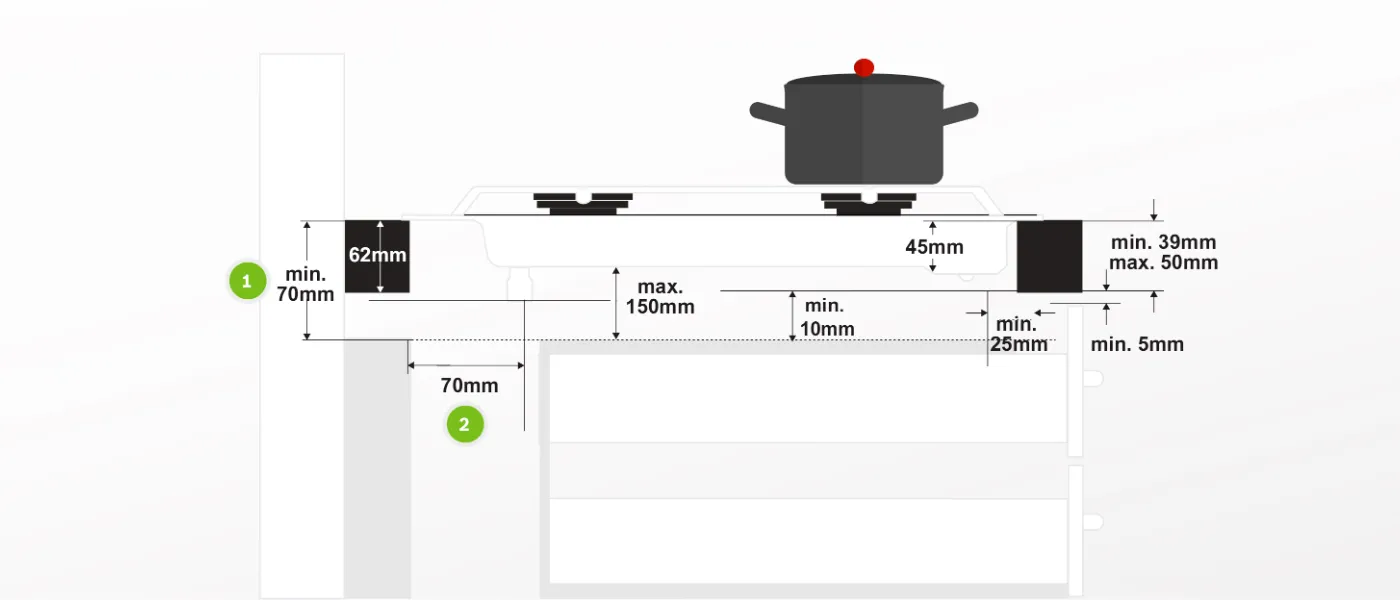

Diagram showing a kitchen layout with measurements for pot placement, counter space, and storage, ensuring proper spacing and safety.

Installing the BBQ domino hobs

There should be an allowance of at least 350mm from the table top to the uppermost cabinet shelf, for collection of liquid food waste from the barbecue hob.

Diagram showing a kitchen workspace with a white pot on a shelf, dimensions labeled: shelf height 350mm, pot space 173mm.
